DAYTON

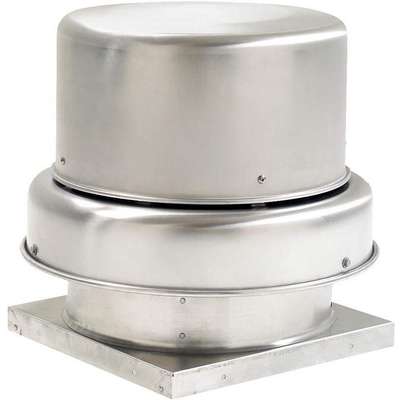

Dayton Centrifugal Downblast Roof Exhaust Fan: Direct Drive, 10 1/2 in Wheel, 1,059 cfm, 1/8 hp, 115V AC, 1
Hover over image to magnify
#927723-9 | Pkg Qty: 1
$741.15 pkg | $741.15 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
AMCA Sound & Air, UL/cUL 705, CSA Certified Motor
Number of Speeds
3
Assembled/Unassembled
Assembled
Overall Diameter
21-3/4 in.
Brand
DAYTON
Overall Height
14-5/8 in.
Drive Type
Direct-Drive
Package Quantity
1
Item
Downblast Ventilator
Phase
1
Mfr. Part Number
4YC67
Shipping Weight
26 lb.
Motor HP
1/8
Voltage
115
Mounting Location
Roof
Wheel Diameter
10-1/2 in.
General
Airflow @ 0.000 in SP
1,059 cfm
For Air Type
Clean Air
Airflow @ 0.000 in SP - Range
0 to 1,999 cfm
For High-Static Pressure Applications
No
Assembly
Fully Assembled
High-Efficiency Motor
No
Base Dimension
19 in Square
Housing Material Fabrication
Spun
Base Shape
Square
Includes
NEMA 1 Junction Box
Brake Horsepower
1/25 hp
Includes Drive Package
Yes
Compatible Curb Manufacturer Part Number
2RB75, 2ZV82, 4C453, 4C670, 4HX38, 4HX46
Includes Motor
Yes
Compatible Curb Part Number
2RB75, 2ZV82, 4C453, 4C670, 4HX38, 4HX46
Maximum Ambient Temperature
130 Degrees F
Compatible Damper Part Number
4HX64
Maximum Fan Speed
1,550 RPM
Compatible Speed Control
48C172
Maximum Inlet Air Temperature
130 Degrees F
Current
2.6/2.3/1.4 A
Maximum Static Pressure
5/8 in wc
Cutout Length
14.5 in
Motor Efficiency
Standard-Efficiency Motors
Cutout Size
14.5 in L x 14.5 in W
Motor Enclosure Design
Open Air-Over (OAO)
Damper Size
12 x 12 in
Motor Horsepower
1/8 hp
Exhaust Airflow @ 0.000 in SP
1,059 cfm
Motor Location
Out of Airstream
Exhaust Airflow @ 0.000 in SP - Range
0 to 1,999 cfm
Motor Speed
1,550 RPM
Exhaust Airflow @ 0.125 in SP
969 cfm
Nameplate Voltage
115V AC
Exhaust Airflow @ 0.250 in SP
863 cfm
Nominal Voltage
115V AC
Exhaust Airflow @ 0.375 in SP
745 cfm
Propeller Shaft Diameter
1/2 in
Exhaust Airflow @ 0.500 in SP
623 cfm
Spark Resistant Construction Type
A
Exhaust Airflow @ 0.500 in SP - Range
0 to 1,999 cfm
Speed Controllable
Variable Speed
Product Description
Ventilator performance can be fine-tuned with a 30% usable turndown at any selected speed. NEMA 1 junction box. UL-705 Listed for Power Ventilators.
Expertly Selected Product Pairings
Documents
Item Barcode
Downblast Vent,Direct Drive,10-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4YC67 | Downblast Vent,Direct |
 | UNSPSC CODES | 40101502 | |
 | VMRS (ATA) CODES | 053-006-009 | Downblast Vent,Direct |
