DAYTON

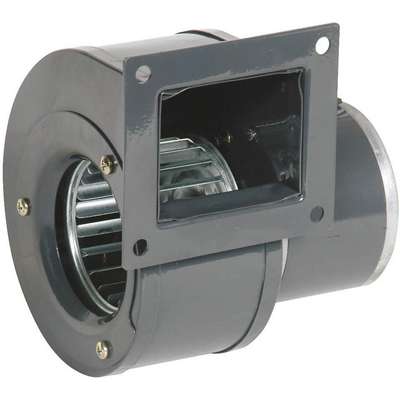

Dayton Rectangular DC OEM Specialty Blower, Flange: Yes, Wheel Dia: 3-15/16", 12VDC

Hover over image to magnify
Blower,149 Cfm,12VDCV,5.50A,
PI_Asset_1769088
PI_Asset_1769855
Blower,149 Cfm,12VDCV,5.50A,
PI_Asset_1769088
PI_Asset_1769855

#927701-5 | Pkg Qty: 1

$121.64 pkg | $121.64 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL Recognized US and Canada (E47479)
Overall Height
5-3/4 in.
Brand
DAYTON
Overall Width
8-3/4 in.
Item
OEM Specialty Blower
Package Quantity
1
Mfr. Part Number
3FRG8
Phase
1
Motor Enclosure
Open
Shape
Rectangular
Motor Type
DC
Shipping Weight
5.5 lb.
Overall Depth
5-3/8 in.
Voltage
12 VDC
General
Blower Conduit Box
Yes
CFM @ 0.500-In. SP
110
Blower Motor Type
DC
Dimension J
4 7/16 in
Blower Outlet Shape
Rectangular
Dimension K
3 1/2 in
Blower Thermal Protection
No Thermal Protection
Dimension L
4 in
Blower Voltage
12V DC
Dimension M
2 7/8 in
Blower Wheel Diameter
3 15/16 in
Includes
Discharge Mounting Flange
Blower Wheel Width
2 1/2 in
Inlet Dia.
3 1/8 in
CFM @ 0.000-In. SP
149
Max. Ambient Temp.
104 Degrees F
CFM @ 0.100-In. SP
140
Max. Inlet Temp.
104 Degrees F
CFM @ 0.200-In. SP
126
Outlet Height
2 3/16 in
CFM @ 0.300-In. SP
124
Outlet Width
3 1/4 in
CFM @ 0.400-In. SP
120
With Flange
Yes

Product Description

Acting as a direct replacement for many OEM blowers with the same physical footprint, this dynamically balanced blower provides smooth and quiet operation. Noise and vibration are held to a minimum to maintain CFM at higher static pressures. The motor has cast-aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. The min./max. operating temperature range is -20° to 104°F.
