AIRMASTER FAN

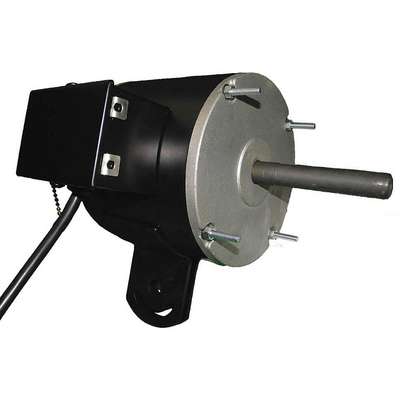

Airmaster Fan 1/4 HP Pedestal Fan Motor, Permanent Split Capacitor, 1100 Nameplate RPM,115 Voltage, Frame 48YZ
Hover over image to magnify
#927695-9 | Pkg Qty: 1
$659.91 pkg | $659.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Yoke
Brand
AIRMASTER FAN
Nameplate RPM
1100
Duty
Continuous
Number of Speeds
3
Duty Cycle
Continuous
Pack Quantity
1
Enclosure
TEAO
Phase
Single
Frame
48YZ
Rotation
CW-EXH
Full Load Amps
3-1/2
Service Factor
1
Hz
60
Shaft Length
3-1/2 in.
Insulation Class
B
Shipping Weight
18.6 lb.
Item
Pedestal Fan Motor
Thermal Protection
Yes
Mfr. Part Number
78018
Voltage
115 VAC
Motor Design
Permanent Split Capacitor
General
Ambient Temperature
40°C
Motor Service Factor
1
Body Dia.
5 3/4 in
Motor Shaft Rotation
CWSE
Capacitor Included
Yes
Motor Sub Application
Pedestal Fan
HP
1/4
Motor Thermal Protection
Auto
Ins. Class
B
No. of Speeds
3
Motor Application
HVAC/R
RPM Range
1,001-1,100
Motor Bearings
Ball
Shaft Dia.
5/8 in
Motor Enclosure Design
Totally Enclosed Air-Over
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Mounting Type
Yoke
Product Description
Stationary pedestal fan AC motors are commonly used to replace specific stationary pedestal fan motors that are damaged.
Expertly Selected Product Pairings
Item Barcode
Pedestal Fan Motor,115V,1/4 Hp
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 33F118 | Pedestal Fan Motor,115V,1/ |
 | UNSPSC CODES | 26101408 | |
 | VMRS (ATA) CODES | 053-006-009 | Pedestal Fan Motor,115V,1/ |
