IRWIN HANSON

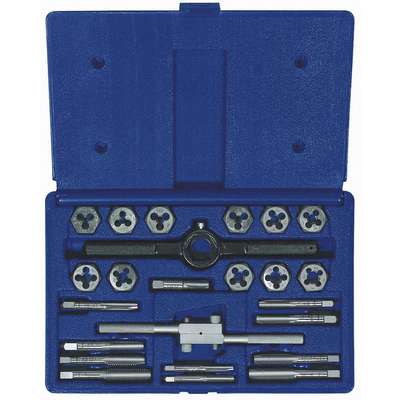

Tap and Die Set: 24 Pieces, 1/8"-27 Min. Tap Thread Size, 1/2"-20 Max. Tap Thread Size

Hover over image to magnify
Tap And Die Set,24 Pc,High
Tap And Die Set,24 Pc,High

#927676-5 | Pkg Qty: 1

$152.48 pkg | $152.48 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
IRWIN HANSON
Shipping Weight
2.99 lb.
Die Material
High Speed Steel
Sizes Included
1/4 in.-20, 1/4 in.-28, 5/16 in.-18, 5/16 in.-24, 3/8 in.-16, 3/8 in.-24, 7/16 in.-14, 7/16 in.-20, 1/2 in.-13, 1/2 in.-20, 1/8 in.-27 NPT
Die Shape
Hex
Spiral Direction
Neutral
Dimension Type
Fractional
Tap Chamfer
Plug
Item
Tap and Die Set
Tap Dimension Type
Inch
Left/Right Hand
Right Hand
Tap Material
High Speed Steel
Material
Carbon Steel
Tap Wrench Number
12421
Mfr. Part Number
24614
Thread Direction
Right Hand
Number of Pieces
24
Thread Type
NC, NF, NPT
Pack Quantity
1
Type
Fractional
SAE or Metric
SAE
General
Class of Fit
2B
Min. Bore Dia.
1/8 in -27 NPT
Die Hex Size
1 in
Min. Tap Thread Size
1/8"-27
Die Material Grade
Carbon Steel
Number Of Taps
11
Die Thread Sizes Included
1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 7/16"-14 NC, 7/16"-20 NF
Number of Dies in Set
11
Die Type
Solid
Tap Series
Hanson
Includes
Die Stock, Offset Tap Wrench
Tap Sizes Included
1/2 in -13 NC, 1/2 in -20 NF, 1/4 in -20 NC, 1/4 in -28 NF, 1/8 in -27 NPT, 3/8 in -16 NC, 3/8 in -24 NF, 5/16 in -18 NC, 5/16 in -24 NF, 7/16 in -14 NC, 7/16 in -20 NF
Material - Machining
High Speed Steel
Tap Type
Straight Flute
Max. Die Thread Size
1/2"-20
Thread Sizes Included
1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 1/8"-27, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20
Max. Tap Thread Size
1/2"-20
Thread Standard
NC, NF, NPT
Measurement System
Fractional Inch
Threads per Inch
13, 14, 16, 18, 20, 24, 27, 28

Product Description

The taps and dies in these sets are made from carbon steel. They are an economical choice for internal- and external-threading applications in maintenance operations.
