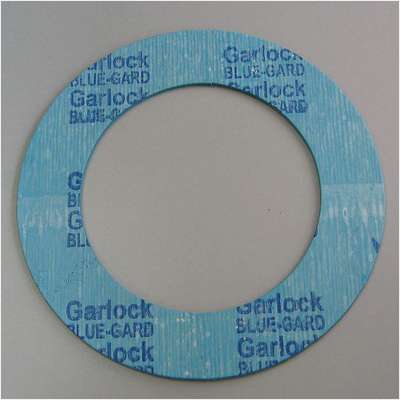

Aramid Fiber with Nitrile Binder Flange Gasket, 7-3/4" Outside Dia., Blue
Hover over image to magnify
#927668-1 | Pkg Qty: 1
$16.55 pkg
| $16.55 ea
Technical Specifications
Key Specifications
Brand
GARLOCK SEALING TECHNOLOGIES
Outside Diameter
7-3/4 in.
Color Family
Blue
Pack Quantity
1
Inside Diameter
5-9/16 in.
Pipe Size
5 in.
Item
Flange Gasket
Shipping Weight
0.2 lb.
Material
Aramid Fiber with Nitrile Binder
Standards
ASME B16.21,ASME/ANSI Pressure Class-150 LB
Maximum Pressure
1000 psi
Temperature Range (Deg. F)
-100 to 400 deg. F
Metal Detectable
No
Thickness
1/8 in.
Mfr. Part Number
3000RG-0150-125-0500
General
Continuous Max. Temp. (F)
400 Degrees F
Flange Class
Class 150
Product Description
This Garlock Sealing Technologies® flange gasket has an innovative blend of aramid fibers, fillers, and elastomeric binders to help provide improved torque retention. Gasket helps reduce fluid loss, maintenance, energy consumption, and inventory costs.
