HONEYWELL MICRO SWITCH

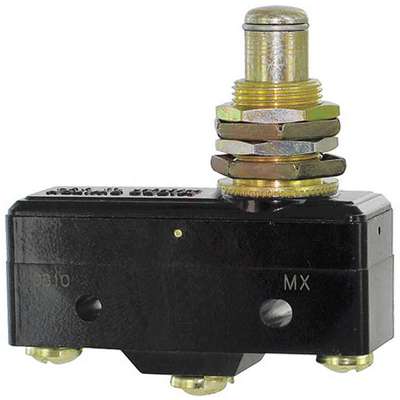

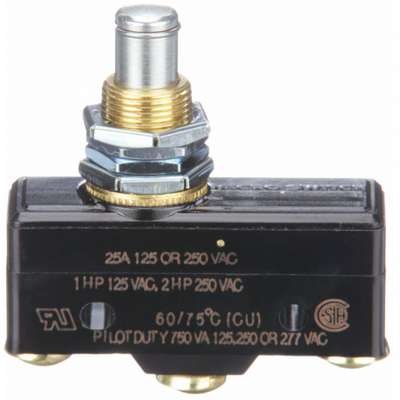

Honeywell Micro Switch 25A @ 480 V Overtravel, Plunger Industrial Snap Action Switch; Series BE
Hover over image to magnify
#927646-5 | Pkg Qty: 1
$54.43 pkg | $54.43 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
25 A @ 480 V
Maximum Pretravel
0.05 in.
Actuator Length
1.94 in.
Mfr. Part Number
BE-2RQ1-A4
Actuator Type
Overtravel, Plunger
Mounting Dimension
1.00 in. Centers
Amperage
25 A
Number of Circuits
1
Basic Actuator Type
Plunger
Operating Force
14.0 to 22.0 oz.
Brand
HONEYWELL MICRO SWITCH
Operating Temperature Range
-6 deg. F to 185 deg. F
Contact Form
SPDT
Over Travel
0.094 in.
Contact Type
SPDT
Package Quantity
1
Current Rating
25A
Release Force
10.00 oz.
DC Contact Rating
25 A @ 250 V
Series
Be
Depth
0.069 in.
Shipping Weight
.1 lb.
Differential Travel
0.0020 in.
Snap Action Switch Type
Industrial Snap Action Switch
Electrical Connection
Screw
Type
Large Basic, Unsealed, BE Series
Height
0.95 in.
Type of Actuator
Overtravel Plunger
Housing Material
Phenolic
Voltage
125/250/480 VAC
Item
Industrial Snap Action Switch
Voltage Rating
125/250/480 VAC
Length
1.94 in.
Width
1.94 in.
Lever Actuator Length
Not Applicable
General
AC Contact Rating - Snap Action Switch
25 A @ 480 V
Height - Snap Action Switch
0.95 in
Actuator Type - Snap Action Switch
Overtravel Roller, Plunger
Mounting Dimension - Snap Action Switch
1.00 in Centers
Basic Actuator Type - Snap Action Switch
Plunger
Number of Circuits - Snap Action Switch
1
Contact Form- Switches
SPDT
Operating Temp. Range
-67° to 185°F
DC Contact Rating - Snap Action Switch
25 A @ 250 V
Standards
UL, CSA
Depth - Snap Action Switch
0.07 in
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
Screw
Width - Snap Action Switch
1.94 in
Product Description
This snap switch is designed for use in irrigation systems, semi-trailer trucks, timing devices, office equipment, test instruments, medical and dental equipment, HVAC equipment, manually operated devices, and valves. It features an overtravel plunger actuator.
Expertly Selected Product Pairings
Item Barcode
Lg Snap Swch,25A,Spdt,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6DXC0 | Lg Snap Swch, 25A,SPDT, |
 | UNSPSC CODES | 39122209 | |
 | VMRS (ATA) CODES | 053-006-009 | Lg Snap Swch, 25A,SPDT, |
