REDHAT

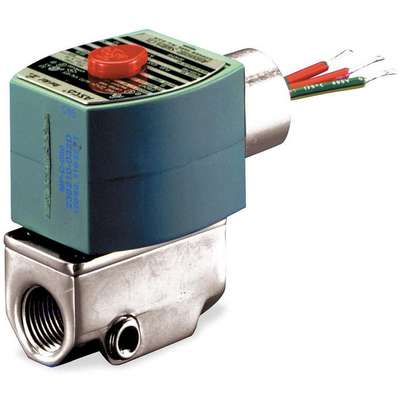

Fuel Gas Solenoid Valve with Test Port: 3/8 in Pipe Size, 15 psi Max. Op Pressure Differential Water
Hover over image to magnify
#927639-5 | Pkg Qty: 1
$107.20 pkg | $107.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ambient Temperature
-40 to 125 deg. F
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Aluminum
Overall Height
2-3/4 in.
Brand
REDHAT
Overall Length
2 in.
Coefficient of Volume
1.2
Overall Width
1-11/16 in.
Configuration
Normally Closed
Package Quantity
1
Electrical Connections
18 in. Leads
Pipe Size
3/8 in.
Hz
50/60
Seal Material
NBR
Item
Fuel Gas Solenoid Valve with Test Port
Shipping Weight
1 lb.
Maximum Fluid Temperature
125°F
Valve Design
2-Way/2-Position
Media Type
Fuel Gas
Voltage
120 VAC
Mfr. Part Number
8040H008
orifice Dia._spec_s
5/16 in.
General
Ambient Temp. Range
-40 Degrees to 125 Degrees F
Max. Operating Pressure Differential Water
15 psi
Application
For Gas Pilot Control of Commercial and Industrial Gas Burners
Media - Valves
Fuel Gas
Body Material - Valves
Aluminum
Min. Operating Pressure Differential
0 psi
Center Line Pipe Center Size
2 5/16 in
Pipe Size - Valves
3/8 in
Coil Enclosure
General Purpose No Junction Box and Watertight
Seal Material - Valves
NBR
Coil Insulation Class
F
Solenoid Valve Product Group
Fuel Gas Solenoid Valve with Test Port
Environmental Rating - Valves
Indoor, Outdoor
Standards
UL, FM, CSA for Safety Shutoff
Max. Operating Pressure Differential
15 psi
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Air/Inert Gas
15 psi
Valve Ways and Positions
2-Way/2-Position
Product Description
2-Way Combustion Shut-Off Valves
- Typical combustible media include natural gas and oil.
- Note: Units with Mfr. Models starting with JB have a junction box connection. Mfr. Models starting with SC are DIN connection.
- Normally Closed, Gas Shut-Off
- Valves shut down automatically in the event of a power interruption; ideal for both pilots and main fuel supplies.
