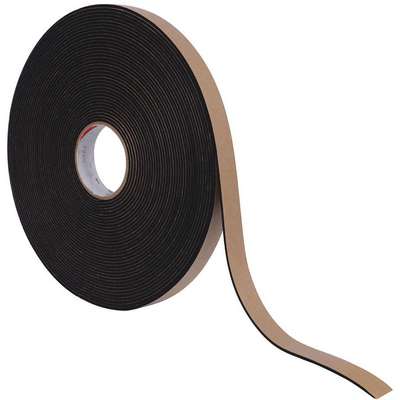

Water-Resistant Closed Cell Foam Strip, Neoprene-EPDM-SBR, 1" Thick, 1" W X 25 ft. L, Black

Hover over image to magnify
Foam Strip,25 Ft. L,1" W,1",
Foam Strip,25 Ft. L,1" W,1",

#927628-2 | Pkg Qty: 1

$40.94 pkg | $40.94 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Backing
Adhesive
Mfr. Part Number
P811ULRL01.00XOH
Brand
APPROVED SUPPLIER
Package Quantity
1
Color Family
Black
Shipping Weight
2 lb.
Finish
Smooth Cellular
Tensile Strength
75 psi
Item
Foam Strip
Thickness
1 in.
Length
25 ft.
Width
1 in.
Material
Neoprene/EPDM/SBR
General
Abrasion Resistance
Fair
Minimum Temperature
-40 °F
Adhesive Temperature Range
0 °F to 140 °F
Nominal Size (WxL)
1 in x 25 ft
Adhesive Type
Rubber
Number of Adhesive Sides
1
Cell Type
Closed Cell
Oil Resistance
Good
Chemical Resistance
Fair
Shape
Strip
Compression Set
25 %
Standards
ASTM D1056 2C2, CAN, CSA C22.2
Density
6 lb/cu ft
Stretch Limit
1.5
Firmness
Soft (5 to 8 psi)
Temp. Range
-40 to 250°F
Firmness @ 25% Deflection
7 psi
Temp. Range (F)
-40 to 250
Firmness @ 25% Deflection (PSI)
5 to 9
Temperature Range
-40 °F to 250 °F
Foam Adhesive
1 – Rubber
Texture
Smooth
Foam Shape
Strip
Thickness Tolerance
+/-0.085 in
Grade
Flame-Resistant
Type
Water-Resistant Closed Cell
Length Tolerance
+/-3.000 in
Water Resistance
Good
Maximum Adhesive Temperature
140 °F
Weather Resistance
Excellent
Maximum Temperature
250 °F
Width Tolerance
+/-0.030 in
Minimum Adhesive Temperature
0 °F

Product Description

Foam Strip, Water-Resistant Closed Cell, Material - Foam Neoprene/EPDM/SBR, Thickness - Foam 1 in, Width - Foam 1 in, Length - Foam 25 ft, Backing Type - Foam Adhesive, Color - Foam Black, Temp. Range (F) -40 to 250, Thickness Tolerance +/-0.085 in, Width Tolerance +/-0.030 in, Length Tolerance +/-3.000 in, Tensile Strength (PSI) 75, Firmness @ 25 Percent Deflection (PSI) 5 to 9, Stretch Limit 1.5, Density 6 lb/cu ft, Standards UL94HF1

Item Barcode
9276282
