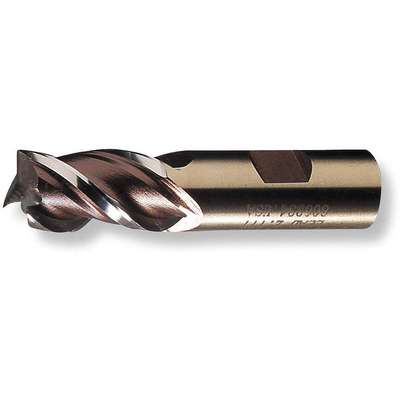

Square End Mill, 5/16" Milling Diameter, Number of Flutes: 4, 3/4" Length of Cut, Bright (Uncoated)

Hover over image to magnify
End Mill, 5/16" Dia, 3/4" Cut,
End Mill, 5/16" Dia, 3/4" Cut,
Square End Mill, 5/16" Milling Diameter, Number of Flutes: 4, 3/4" Length of Cut, Bright (Uncoated) Video

#927594-5 | Pkg Qty: 1

$23.65 pkg | $23.65 ea
Item Number 927594-5
Scanner Description End Mill, 5/16" Dia, 3/4" Cut,
Inventory Status Drop Ship Item
Weight 0.06 lb
Brand CLEVELAND

Technical Specifications

Application
For Periferal Cuts on Aluminum, Brass, Bronze, Cast Iron, Copper, Ferritic Based Alloys, Stainless Steel Up To 40 HrC, Steel and Titanium
Grade
General Purpose
Brand
CLEVELAND
Helix Angle
30
Chip-Breaker
No
Length of Cut
3/4 in.
Corner Radius
0.000 in.
List Number
HG-4C
Cut
Right Hand
Material
High Speed Steel
Cutting Direction
Right Hand
Mfr. Part Number
C41250
Cutting Type
Center
Milling Diameter
5/16 in.
Diameter
5/16 in.
Neck Length
Not Applicable
Dimension Type
Fractional Inch
Number of Flutes
4
End
Single
Overall Length
2-1/2 in.
End Mill Application
Finishing
Pack Quantity
1
End Mill Cutting Type
Center Cutting
Primary Material Application
Cast Iron, Copper, Steel, Tool and Die Steel
End Mill Material
High Speed Steel
Single End/Double End
Single End
End Style
Square
Type
Standard

Product Description

Four-flute end mills clear chips more quickly than end mills with more flutes and allow for higher feed rates than end mills with fewer flutes. They also typically have larger cores and are less prone to breaking than end mills with fewer flutes.

General purpose high-speed steel square end mills are intended for milling a wide variety of common materials but are not suitable for milling hard materials like titanium or gummy materials like aluminum. Finishing end mills create a finer finish on the workpiece than roughing and roughing/finishing end mills. High-speed steel square end mills offer good wear resistance for basic milling applications. They're more flexible and can absorb more shock and vibration than carbide, cobalt, or powdered-metal end mills. These end mills have a bright finish that provides a smooth, polished surface. Sometimes called square-nose end mills, square end mills have a square nose and are rotated against a piece of stock to create a flat-bottomed groove with 90° inside corners in milling tasks. They are used for counterboring, side and face milling, and milling square shoulders.

Item Barcode
9275945
  Name Item Description
Grainger Dropship Grainger Dropship 2NFG1 End Mill, 5/ 16" Dia, 3/
UNSPSC CODES UNSPSC CODES 27112803
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 End Mill, 5/ 16" Dia, 3/

For more product information by email, click here
