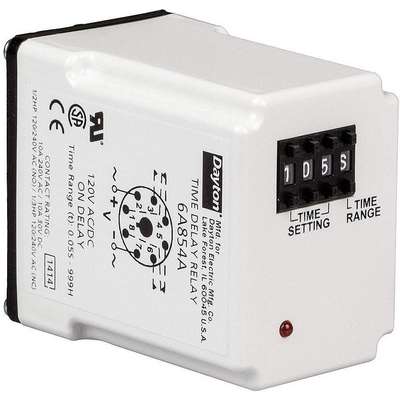

Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact

Hover over image to magnify
Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact
Time Delay Relay,120VAC/Dc,10A,
PI_Asset_1354970
Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact Video

#927514 | Pkg Qty: 1

$83.98 pkg | $83.98 ea
Item Number 927514
Scanner Description Time Delay Relay,120VAC/Dc,10A,
Inventory Status Drop Ship Item
Weight 0.25 lb
Brand DAYTON

Technical Specifications

AC Contact Rating
10A @ 240V
Maximum Time Setting
999 hr.
Adjustment Method
Push Button Thumbwheels
Mfr. Part Number
6A854
Base Type
Octal
Minimum Time Setting
0.05 sec.
Body Depth
1.7 in.
Mounting
Plug In
Body Height
2.9 in.
Number of Contacts
2
Body Width
2.4 in.
Number of Digits
4
Brand
DAYTON
Number of Functions
1
Coil Rating
3VA
Number of Pins
8
Coil VA Rating
3
Number of Poles
2
Coil Volts
120VAC/DC
Operating Functions
1
Contact Form
DPDT
Overall Height
3 in.
Contact Material
Silver Nickel
Pack Quantity
1
DC Contact Rating
10A @ 30V
Pins
8
Electrical Connection
Socket
Relay Power Consumption
2.5VA, 2.0W
Function
On Delay
Resistive Contact Amp Rating
10A
HP @ 120 V
1/3
Socket
5X852, 1EGP3, 1EGP5
HP @ 240 V
1/2
Socket Code
A
Hz
50/60
Standards
UR, CSA, CE
Input Power Consumption
2.5VA, 2.0W
Status Indicator
LED
Input or Control Voltage
120VAC/DC
Type
Plug-In
Item
Single Function Time Delay Relay

Product Description

This programmable time delay relay offers an easy and accurate way to any time delay between 50ms and 999 hours with an On Delay function. Programming is accomplished by using a pushbutton thumbwheel to select one of seven built-in time ranges and to digitally set the time delay required. An LED indicates timing mode and time-out condition.
