CANARM

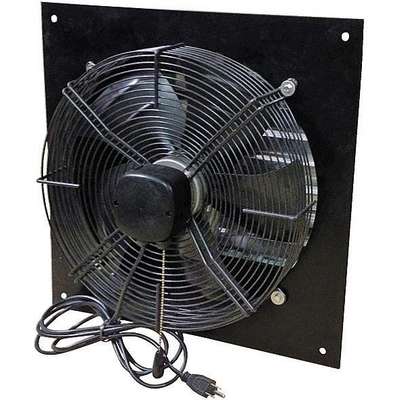

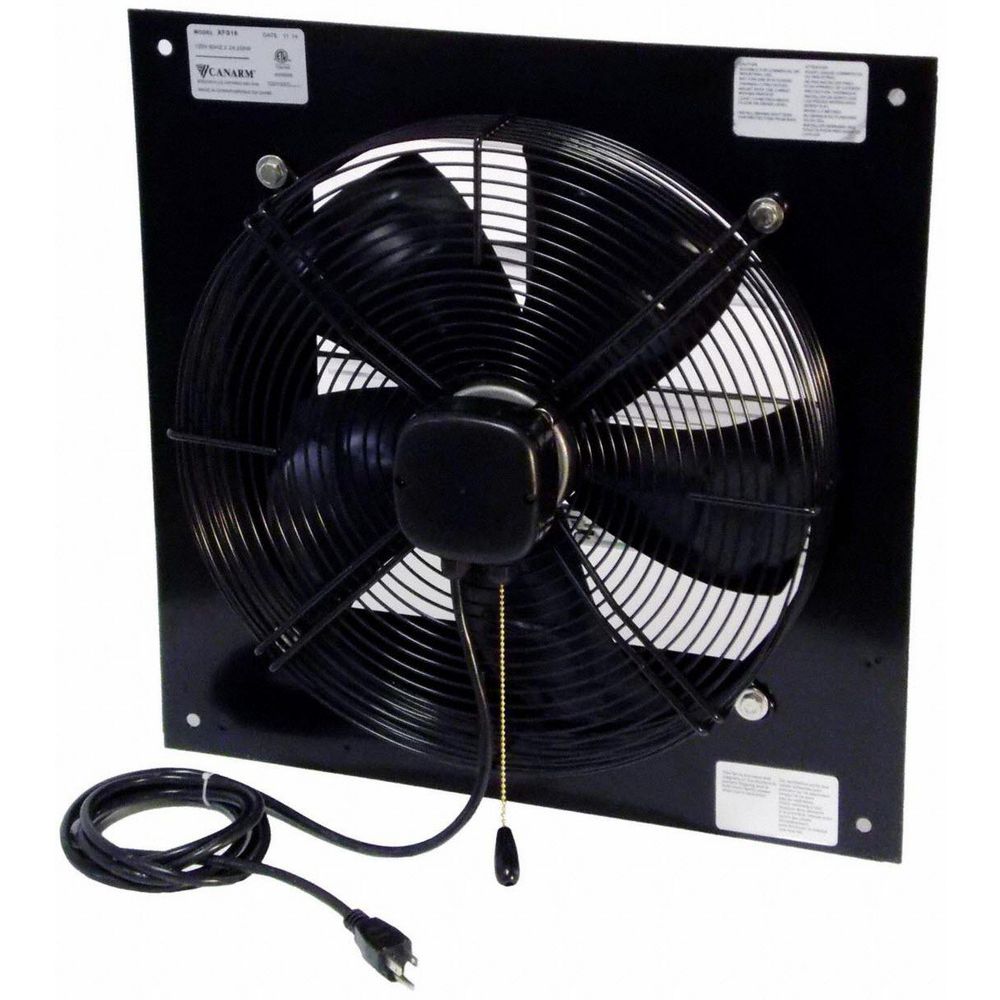

Canarm 1/4 HP 20"-Dia. 115VACV Shutter Mount Exhaust Fan, 22" Square Opening Required
Hover over image to magnify
#927492-9 | Pkg Qty: 1
$440.22 pkg | $440.22 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Type
Sealed Ball
Motor HP
1/4
Blade Diameter
20 in.
Motor Type
Outside Rotor Motor
Blade Material
Steel
Number of Blades
5
Brand
CANARM
Package Quantity
1
Height
24-7/8 in.
Phase
1
Item
Shutter Mount Exhaust Fan
Shipping Weight
37 lb.
Mfr. Part Number
XFS20
Voltage
115 VAC
Motor Enclosure
Totally Enclosed
Width
24-7/8 in.
General
Assembled
Fully Assembled
Maximum Airflow
3,300 cfm
Exhaust Airflow @ 0.000 in SP
3,300 cfm
Maximum Ambient Operating Temperature
158 Degrees F
Exhaust Airflow @ 0.100 in SP
3,300 cfm
Maximum Exhaust Airflow @ 0.000 in SP
2001 to 4000 cfm
Exhaust Airflow @ 0.125 in SP
3,300 cfm
Maximum Noise Level
17 sones
Fan Style
Shutter-Mounted
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Fan Voltage
115V AC
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
For Cut-Out Height
22 in
Motor Horsepower
1/4 hp
For Cut-Out Length
22 in
Motor Speed
1,140 RPM
For Cut-Out Width
22 in
Nameplate Voltage
115V AC
For Maximum Wall Thickness
5 in
Noise Level @ 0.000 in SP @ 5 ft
17 sones
For Minimum Wall Thickness
5 in
Noise Level @ 0.100 in SP @ 5 ft
16 sones
Full Load Current
2.3 A
Nominal Voltage
115V AC
Guard Finish
Powder Coated
Number of Fans
1
Guard Type
Intake
Speed Controllable
Yes
Includes
Power Cord with 115V 3 Prong Plug, Shutter, Wire Guard
Square Opening Required
20-1/2 to 30 in
Includes Dehumidistat
No
Supply Airflow @ 0.000 in SP
3,300 cfm
Includes Grill
No
Vent Design
Ductless
Includes Motor
Yes
Ventilation Type
Exhaust
Manufacturer Warranty Length
1 yr
Product Description
Provides reliable, quiet, maintenance-free operation and is ideal for commercial applications. Shutters open automatically when the fan starts up and close when the fan stops. Features thermally-protected motor and aluminum shutters with tie bar to maximize airflow. Shipped fully assembled.
