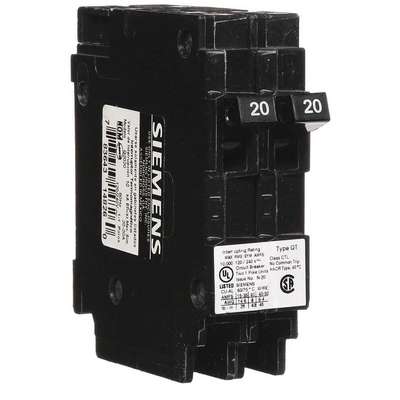

Siemens Plug In Circuit Breaker, Q, Number of Poles 2, 20/20 Amps, 120/240 VAC, Tandem

Hover over image to magnify
Circuit Breaker,20A,2P,10kA,
PI_Asset_967319
PI_Asset_967320
PI_Asset_967321
PI_Asset_967322
PI_Asset_967323
Circuit Breaker,20A,2P,10kA,
PI_Asset_967319
PI_Asset_967320
PI_Asset_967321
PI_Asset_967322
PI_Asset_967323

#927449-8 | Pkg Qty: 1

$37.71 pkg | $37.71 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
120VAC
Maximum Wire Size
8 AWG
Air @ 240 VAC
10kA
Mfr. Part Number
Q2020
Amperage
20/20 A
Minimum Wire Size
14 AWG
Amps
20/20 A
Number of Poles
1
Brand
SIEMENS
Package Quantity
1
Circuit Breaker Type
Duplex
Panelboard Mounting
Plug-In
DC Voltage Rating
Not Rated
Phase
Single
Depth
3 in.
Series
Q
For Use With
Siemens EQ Load Centers
Shipping Weight
.35 lb.
Frame Size
125A/QP
Terminal Connection
Lug
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
120/240VAC
Length
3 in.
Width
2 in.
Maximum Air Rating
10kA at 120VAC
General
AIR @ 240VAC
10kA
Circuit Breaker Mounting Style
Plug In
Circuit Breaker Actuator
Toggle
Compatible Panelboard/Load Center Series
EQ

Product Description

These Q series miniature circuit breakers plug into place in panelboards and EQ load centers and don't require bolting, so they're easier to install than bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
