DAYCO

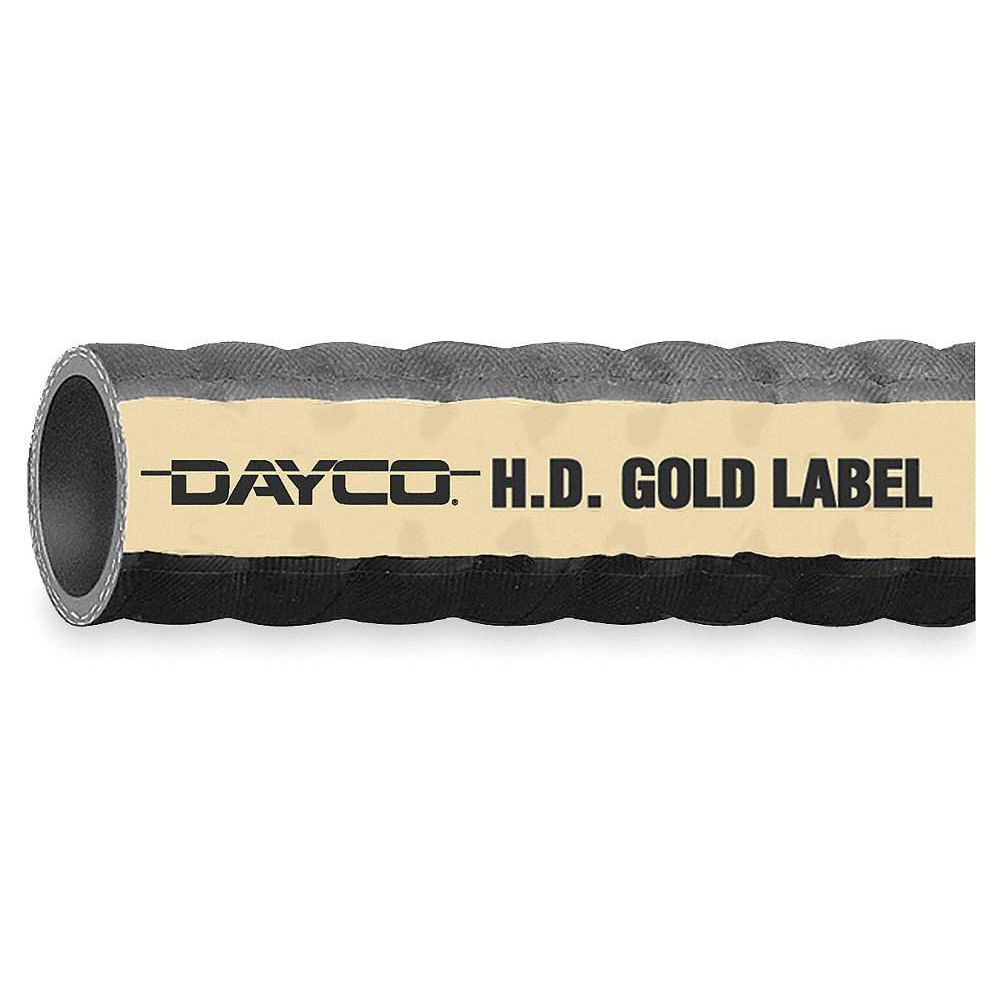

4 Ft. Class B Tube Heavy Duty Radiator Hose with 2-1/2" Inside Dia., Black/Gold

Hover over image to magnify
Radiator Hose,Id 2 1/2 In,Od 2.
Radiator Hose,Id 2 1/2 In,Od 2.

#927415-2 | Pkg Qty: 1

$199.94 pkg | $199.94 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
DAYCO
Mfr. Part Number
75250GL
Color Family
Black / Yellow
Package Quantity
1
Item
Heavy Duty Radiator Hose
Shipping Weight
4.7 lb.
General
Compatible Chemicals
Air, Antifreeze (Coolant), Fresh Water
Hose Inside Dia.
2 1/2 in
For Media Type
Air, Antifreeze, Water
Hose Style
Straight
For Use With
Radiator Fluids
Hose Tube Material
EPDM
Hose Configuration
Bulk Hose
Max. Working Pressure @ 70 F
50 psi
Hose Cover Material
Neoprene
Temp. Range
-40 Degrees to 212 Degrees F
Hose Elbow Angle
0 Degrees

Product Description

These nitrile SAE 20R2 Class B radiator and coolant hoses meet SAE (Society of Automotive Engineers) Standard 20R2. They are used for routing coolant in heavy-duty trucks where the hoses must make multiple bends or bends with small radiuses. The hoses have single-ply fabric reinforcement over a fully embedded helical steel wire, which strengthens the hoses and allows them to resist kinking and avoid collapsing under vacuum. The hoses have a neoprene cover that provides low (Class C) oil resistance, and they have a nitrile tube that provides good (Class B) oil resistance.

Radiator and coolant hoses carry coolant from a vehicle's radiator to its engine to cool the engine and prevent overheating and vehicle malfunction. They also transport hot coolant from a vehicle's engine to its radiator, where the coolant is cooled for recirculation. Also known as antifreeze hoses, coolant lines, and coolant tubing, these hoses are made from materials that can withstand exposure to the chemicals and additives used in vehicle cooling systems.
