PARKER

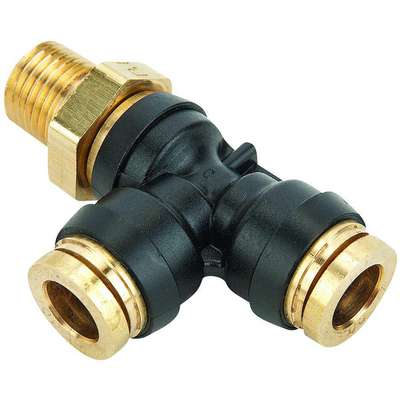

DOT Approved Male Run Tee: Composite, NPTF x Push-to-Connect x Push-to-Connect, 1/2 in. Tube OD x 1/2 in. Pipe Thread
Hover over image to magnify
#927387-1 | Pkg Qty: 1
$34.45 pkg | $34.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PARKER
Material
Nylon 12 Body
Composite DOT Push-to-Connect Fittings Type
Tees
Mfr. Part Number
371PTC-8-8
Connection
Tube x MNPT
Pack Quantity
1
DOT Approved
Yes
Pipe Thread
1/2 in.
Fitting Style
Composite
Shape
Run Tee
Fitting Type
Push-To-Connect
Shipping Weight
.19 lb.
Gasket Material
Buna N
Tube Outside Diameter
1/2 in.
Hex Size
15/16 in.
Working Pressure
Up to 250 psi
General
Application
Air
Fitting Side C Connection Type
Push-to-Connect
Compatible Tube Material
Nylon (J844 Type A and B), Stainless Steel
Fitting Side C Tube Outer Diameter
1/2 in
End Connection Type
Push-to-Connect, Threaded
For Use With
SAE J844 Tubing
Fitting Body Material
Composite
Maximum Operating Pressure
250 psi
Fitting Shape
Tee
Overall Length
2 19/32 in
Fitting Side A Connection Type
NPTF
Resistance Properties
Compact-Resistant, Impact-Resistant
Fitting Side A Pipe Size
1/2 in
Specific Fitting Shape
Adapter Tee
Fitting Side B Connection Type
Push-to-Connect
Standards
DOTFMVSS 571106, SAE J1131, SAE J2494-3
Fitting Side B Tube Outer Diameter
1/2 in
System of Measurement
Imperial
Product Description
Male Run Tee, DOT Fitting, Length 2.74 In., Hex Size 15/16 In., Pipe Size 1/2 In., Tube Size 1/2 in, Thread Size 1/2 In., Pressure (PSI) 250, Outside Dia. 1/2 In., Connection Tube x MNPT, Temp. Range -40 Degrees to 200 Degrees F, Material Nylon, Gasket Material Buna N, For Use With SAE J844 Tubing, Standards DOTFMVSS 571106, SAE J1131, SAE J2494-3
Item Barcode
Male Run Tee,1/2 In. Tube Sz,2.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 48MA31 | Male Run Tee, 1/2 in. Tube |
 | UNSPSC CODES | 26112101 | |
 | VMRS (ATA) CODES | 053-006-009 | Male Run Tee, 1/2 in. Tube |
