LEESON

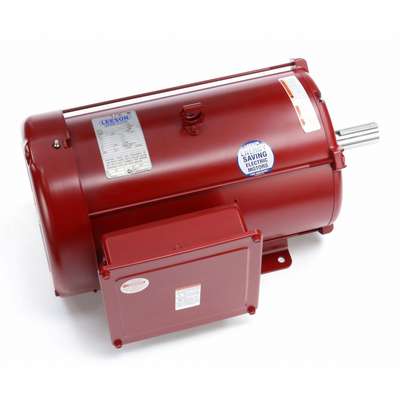

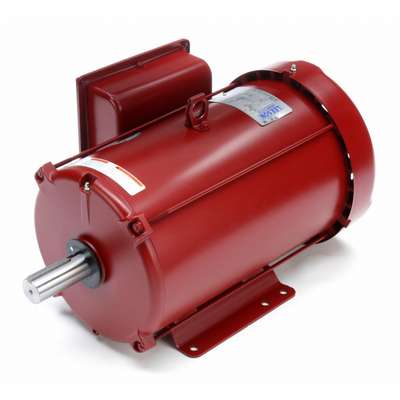

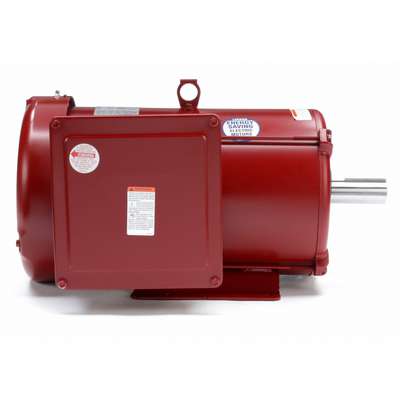

Leeson 10 HP Extra High Torque Farm Duty Motor,Capacitor-Start/Run,1740 Nameplate RPM,230 Voltage
Hover over image to magnify
#927366-4 | Pkg Qty: 1
$2,611.49 pkg | $2,611.49 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LEESON
Mfr. Warranty Length
1 yr.
Duty
Continuous
Motor Design
Capacitor-Start/Run
Duty Cycle
Continuous
Nameplate RPM
1740
Finish
Enamel
Overall Length
20-11/16 in.
Frame
215T
Package Quantity
1
Full Load Amps
40
Phase
Single
Hz
60
Shaft Length
3-3/8 in.
Item
Farm Duty Motor
Shipping Weight
181 lb.
Length Less Shaft
17-5/16 in.
Voltage
230 VAC
Mfr. Part Number
140414
General
Capacitor Required
Yes
Motor Shaft Design
Keyed
HP
10
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Thermal Protection
Manual
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
86.5 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Efficiency Group
Standard Efficient
Shaft Dia.
1 3/8 in
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Standards
CSA (LR2025), UL (E49747)
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
Horizontal
Usable @ 208V
No
Motor Mounting Type
Rigid Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Service Factor
1.15
Product Description
Extra-high-torque farm-duty AC motors have up to 400% starting torque for extremely hard-starting applications and can start under full-load conditions in powering conveyors, silo unloaders, barn cleaners, compressors, and manure pumps. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Item Barcode
Extra High Torque Farm Duty
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 48ZJ61 | Extra High Torque Farm |
 | UNSPSC CODES | 26101103 | |
 | VMRS (ATA) CODES | 053-006-009 | Extra High Torque Farm |
