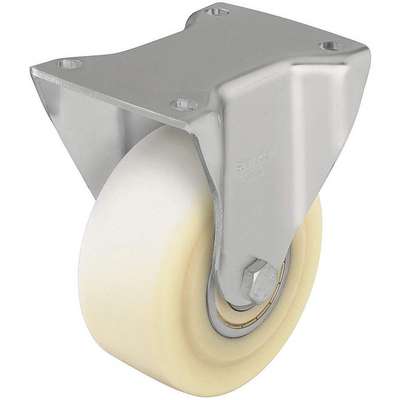

Standard Plate Caster, Rigid, Nylon, 1540 lb., 3-7/8" Wheel Dia.

Hover over image to magnify
Rgd Plate Caster,Nylon,4 In.,
PI_Asset_947818
Rgd Plate Caster,Nylon,4 In.,
PI_Asset_947818

#927339-8 | Pkg Qty: 1

$71.05 pkg | $71.05 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
1540 lb.
Caster Brake Included
No
Mfr. Part Number
BH-GSPO 100K-1
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
5/16 in.
Caster Core Material
Nylon
Mounting Height
5-1/2 in.
Caster Load Rating Range
Medium Duty
Non-Marking
Yes
Caster Plate Hole Pattern
D
Number of Mounting Holes
4
Caster Plate Size
3-3/8 in. x 3-15/16 in.
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
2-3/8 in. x 3-5/32 in.
Caster Wheel Bearings
Precision Ball
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Rigid
Caster Wheel/Tread Material
Nylon
Replacement Wheel
Mfr. No. GSPO 100/20K
Core Color
White
Shipping Weight
2.85 lb.
Durometer
80 Shore D
Wheel Color
Beige
Frame Finish
Zinc Plated
Wheel Diameter
3-7/8 in.
Frame Material
Steel
Wheel Width
1-5/8 in.
Inside Bolt Hole Spacing
2-3/8 in. x 3-5/32 in.
Wheel/Tread Hardness Rating
Hard
Item
Standard Plate Caster
General
Application
General / Industrial / Commercial / Institutional purpose
Standards
DIN EN 12543, ISO 14001, ISO 5001, ISO 9001
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Caster Plate Thickness
3/16"
Tread Shape
Standard
Caster Product Group
Rigid Caster
Wheel Bearing Type
Precision Ball
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Nylon
Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 7/8 in
Mounting Plate Bolt Hole Pattern
D
Wheel/Tread Hardness
80 Shore D
Mounting Plate Size
3 3/8 in x 3 15/16 in
Wheel/Tread Material
Nylon
Mounting Plate Size (Bolt Hole Pattern)
3 3/8 in x 3 15/16 in (D)

Product Description

Heavy-duty standard plate casters have zinc-plated welded steel frames and a stronger kingpin than light-duty or medium-duty casters, which allows them to withstand heavy loads and frequent use. They mount onto the bottom of racks, utility trucks, production jigs, fixtures, and other equipment used in industrial settings where the casters will be rolling along irregular or rough surfaces and may encounter shock loading. Swivel versions of these casters have hardened bearing raceways and double ball swivel bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
