ENERPAC

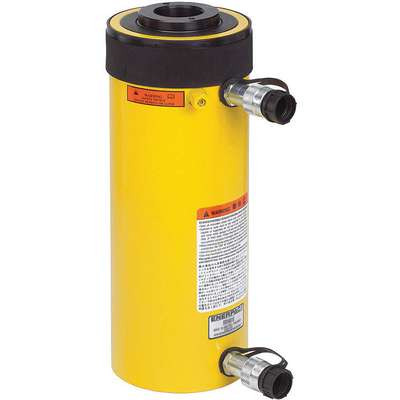

60 tons Double Acting Hollow Steel Hydraulic Cylinder, 3-1/2" Stroke Length

Hover over image to magnify
Cylinder,60 Tons,3-1/2in.
PI_Asset_1353722
Cylinder,60 Tons,3-1/2in.
PI_Asset_1353722

#927330-4 | Pkg Qty: 1

$6,968.60 pkg | $6,968.60 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
ENERPAC
Package Quantity
1
Item
General Purpose Hydraulic Ram
Shipping Weight
70 lb.
Mfr. Part Number
RRH603
General
Base Bolt Circle Dia.
5.12 in
Max. Push Capacity
60 ton
Base Mounting Thread Size
1/2"-13
Nominal Stroke Length
4 in
Center Hole Dia.
2.13 in
Oil Capacity Push
44.57 cu in
Collar Thread Size
6-1/4"-12
Outside Dia.
6.25 in
Effective Push Area
12.73 sq in
Plunger Dia.
3.63 in
Extended Height
13.25 in
Plunger Thread Size
2 3/4"-16
Includes
Dust Cap, Female Coupler
Retracted Height
9.75 in
Max. Pressure
10,000 psi
Single Acting/Double Acting
Double Acting

Product Description

General purpose hollow rams attach to a hydraulic pump to lift heavy loads with minimal effort. The hollow piston accepts a threaded rod to allow the ram to be used for push and pull applications. They have a maximum working pressure of 10,000 psi.

Hollow hydraulic rams have a hollow ram, plunger, and piston rod that can be used with a threaded rod for pushing, pulling, tensioning, and testing applications. The rod is threaded through the piston and threaded into or through the workpiece to pull it out or push it into place. Hydraulic rams attach to a hydraulic pump to apply large amounts of force to support or move workpieces.
