SAFE-T-SPAN

Safe-T-Span Pedestrian Pultruded Grating; 96 in. Span x 3 ft. W, Gray

Hover over image to magnify
Pedestrian Pultruded Grating,
PI_Asset_950836
PI_Asset_950837
Pedestrian Pultruded Grating,
PI_Asset_950836
PI_Asset_950837

#927319-1 | Pkg Qty: 1

$859.24 pkg | $859.24 ea
This item requires special shipping, additional charges may apply.

Technical Specifications

Key Specifications
Brand
SAFE-T-SPAN
Pack Quantity
1
Color Family
Gray
Pattern
None
Depth
1-1/2 in.
Resin Type
ISOFR
Item
Pedestrian Pultruded Grating
Shipping Weight
68 lb.
Maximum Temperature
150 deg. F
Span
96 in.
Mesh Size
None
Surface
Grit-Top
Mfr. Part Number
873150
Width
3 ft.
General

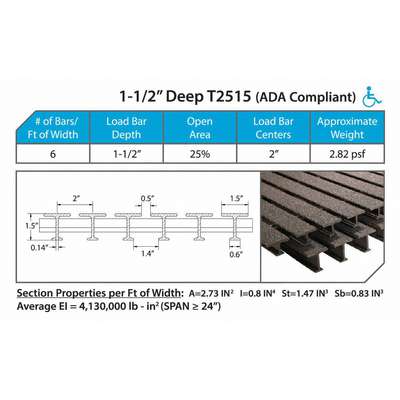

Bearing Bar Height
1 1/2 in
Mesh Size
None
Bearing Bar Width
1.5 in
Type
T2515
Grating Key
T2515

Product Description

Nonconductive, lightweight Safe-T-Span® grating is manufactured from a fire-retardant isophthalic polyester resin system (ISOFR). Corrosion- and slip-resistant material replaces steel bar grating. A high percentage of glass provides durability and high unidirectional strength and stiffness making this the ideal solution for applications where longer support spans are required. Supports loads in the span direction only.

Item Barcode
9273191
Pedestrian Pultruded Grating,
  Name Item Description
Grainger Dropship Grainger Dropship 4AUL5 Pedestrian Pultruded
UNSPSC CODES UNSPSC CODES 30103204
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Pedestrian Pultruded
