HONEYWELL

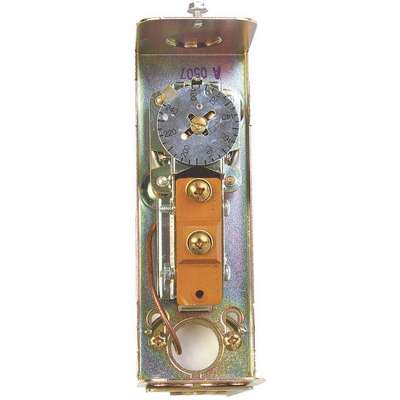

Honeywell Boiler-Mounted, High Limit, Manual Reset Immersion Controller, Temp. Range 130° to 270°F

Hover over image to magnify
Aquastat Controller, Well
Aquastat Controller, Well

#927312-1 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Agency Compliance
UL & CSA
Mfr. Part Number
L4006E1067
Brand
HONEYWELL
Mounting Position
Horizontal or Vertical
Depth
2-1/8 in.
Pack Quantity
1
Differential
Manual Reset
Shipping Weight
4.6 lb.
Height
8-5/8 in.
Width
2 in.
Item
Immersion Controller
General
Application
High Limit, Manual Reset
Locked Rotor Amps @ 120V
48 A
Bulb Size (In.)
3/8 X 2 7/8
Locked Rotor Amps @ 240V
30.6 A
Full Load Amps @ 240VAC
13 A
Millvolt
025 A @ 025 To 12 Vdc
Includes
3 in (76 Mm) Insulation, Stop Factory-Set At 250 F (121 C), Well Adapter And Heat-Conductive Compound
System Switching
SPST
Insulation Depth (In.)
3 in
Temp. Range
130 Degrees to 270 Degrees F

Product Description

Immersion Controller, Boiler-Mounted, High Limit, Manual Reset, Height8 5/8 in, Depth2 1/8 in, Width2 in, Temp. Range 130 Degrees to 270 Degrees F, Differential Manual Reset, 8, 13, 48, 30.6, 025 A @ 025 To 12 VDC, Horizontal or Vertical, High Limit, Manual Reset, Requires 3 in Insulation, Stop Factory-Set at 250 Degrees F Well Adapter and Heat-Conductive Compound, Includes 3 in (76 Mm) Insulation, Stop Factory-Set At 250 F (121 C), Well Adapter And Heat-Conductive Compound

Item Barcode
9273121
Aquastat Controller, Well
