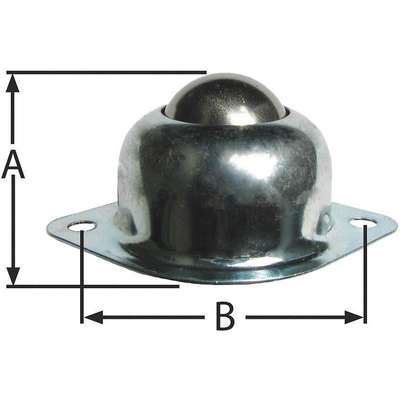

Ball Transfer, Flange Ball Transfer Mount Type, Carbon Steel Ball Material, Galvanized

Ball Transfer, Flange Ball Transfer Mount Type, Carbon Steel Ball Material, Galvanized

#927311-4 | Pkg Qty: 1

$4.06 pkg | $4.06 ea
Item Number 927311-4
Scanner Description Ball Transfer,Flange,1In Ball
Inventory Status Drop Ship Item
Weight 0.1 lb
Brand ASHLAND CONVEYOR

Technical Specifications

Ball Diameter
1 in.
Item
Ball Transfer
Ball Load Capacity
75 lb.
Length
2-3/4 in.
Ball Material
Carbon Steel
Mfr. Part Number
BT F 2H 1DIA 75 CS/CS
Ball Transfer Mount Type
Flange
Mounting Style
7/32 in.
Brand
ASHLAND CONVEYOR
Pack Quantity
1
Height
1-13/16 in.
Projection
5/16 in.
Housing Diameter
1-11/16 in.
Type
Flange
Housing Finish/Coating
Galvanized
Width
2 in.
Housing Material
Zinc Plated Steel

Product Description

Ball Transfer Units

  • Nylon ball units are used for nonmarking applications Steel ball units are sealed and lubricated Cushioned units allow vertical depression and more uniform loading Ball transfers allow change of direction and rotation. Use in areas such as the intersection of 2 conveyors.
Item Barcode
9273114
  Name Item Description
Grainger Dropship Grainger Dropship 3MY77 Ball Transfer,
UNSPSC CODES UNSPSC CODES 24101702
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Ball Transfer,
