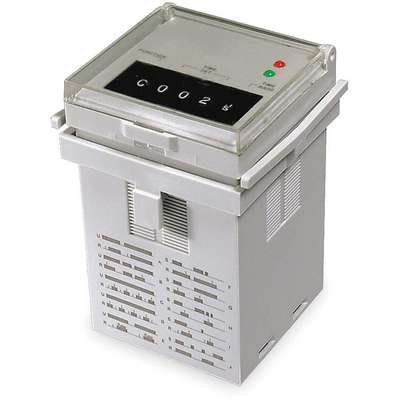

Multi-Function Time Delay Relay, 12 to 240VAC/DC Coil Volts, 12A Contact Amp Rating (Resistive), Con

Zoom Icon
Secondary Item Image
1EJN6_1
Secondary Product Video

#927255-9 | Pkg Qty: 1

$92.00 pkg | $92.00 ea
Item Number 927255-9
Scanner Description Time Delay Rlay,12 To 240VAC/
Inventory Status Drop Ship Item
Weight 0.35 lb
Brand DAYTON

Technical Specifications

AC Contact Rating
12A @ 240V
Input or Control Voltage
12 to 240VAC/DC
Adjustment Method - Timer
Rotary Knob
Item
Multi-Function Time Delay Relay
Base Type
Octal
Item - Relay
Multi-Function Timing Relay
Body Depth - Relay
1.73 in.
Max. Time Setting
9990 hr.
Body Height - Relay
2.60 in.
Max. Time Setting - Timer
416 days 6 hr.
Body Width - Relay
1.42 in.
Mfg Part Number
1EJN6
Brand
DAYTON
Min. Time Setting
0.1 sec.
Coil Rating
2.5VA
Min. Time Setting - Timer
0.10 sec.
Coil VA Rating
2-1/2
Mounting
Plug In
Coil Volts
12 to 240VAC/DC
Mounting - Relay
Plug In
Contact Amp Rating (Inductive)
6
Number of Contacts
2
Contact Amp Rating (Resistive)
12A
Number of Functions
7
Contact Form
DPDT
Number of Pins - Relay
11
Contact Form - Relay
DPDT
Number of Poles
2
Contact Material
Silver Alloy
Operating Functions
1, 2, 4, 5, 6, 8, 9
DC Contact Rating - Relay
12A @ 30V
Overall Height - Relay
3.00 in.
Display
LED
Pack Quantity
1
Electrical Connection
Socket
Pins
11
Function
On Delay, Off Delay, Interval Delay, Cycle 1 Shot, Repeat Cycle, Signal Interval/Off Delay, Signal On Delay/Off Delay
Power Consumption - Relay
2.5VA, 2.0W
HP @ 120V
1/3
Socket
6X156, 1EGP2, 1EGP4
HP @ 240V
1/2
Socket Code
B
Hz
50/60
Standards
E40944
Hz - Electrical
50 Hz, 60 Hz
Status Indicator
None
Input Power Consumption (Burden)
2.5VA, 2.0W
Type
Time Delay

Product Description

Multi-Function Time Delay Relay, Function - Timing Relay Cycle One Shot, Interval Delay, Off Delay, On Delay, Repeat Cycle, Signal Interval/Off Delay, Signal Of Delay/On Delay, Coil Volts 12 to 240V AC/DC, AC Contact Rating - Relay 12A @ 240V, DC Contact Rating - Relay 12A @ 30V, Base Type - Plug In Relay Octal, Number of Pins - Relay 11, Mounting - Relay Plug In, Contact Form - Relay DPDT, Power Consumption - Relay 2.0 W, 2.5 VA, Adjustment Method - Timer Rotary Knob
