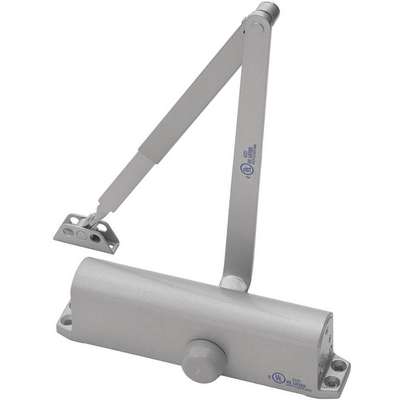

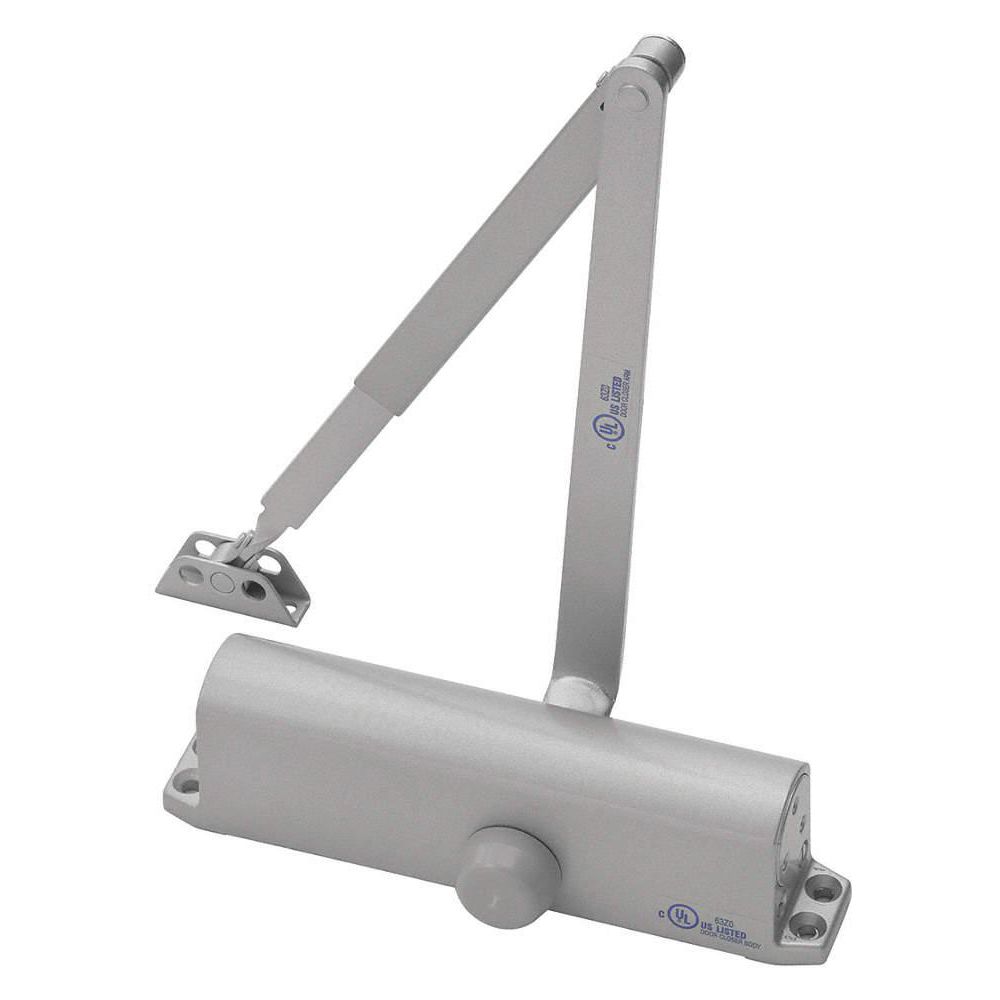

Manual Hydraulic GA V 1101-Series Door Closer, Heavy Duty Interior and Exterior, Silver
Hover over image to magnify
#927250-2 | Pkg Qty: 1
$194.90 pkg | $194.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ADA Compliance
Yes
Housing Height
1-7/8 in.
Arm Material
Steel
Housing Length
9-1/16 in.
Arm Type
Standard
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Interior/Exterior
Interior and Exterior
Brand
APPROVED SUPPLIER
Item
Door Closer
Closer Type
Non Hold Open
Ligature Resistant
No
Color Family
Silver
Mfr. Part Number
1101BF x 689 GAV
Door Opening Width
180 deg.
Mounting Style
Parallel, Regular, Top Frame
Duty Rating
Heavy Duty
Pack Quantity
1
Finish
Painted
Projection
2-7/8 in.
Hand Orientation
Non-Handed
Series
GAV 1101
Hardware Included
Yes
Shipping Weight
5.94 lb.
Housing Depth
2-5/8 in.
Spring Size
Adjustable 1 to 4
General
ADA Compliant
Yes
Includes
Adjustable Back Check Valve, Closing Speed Valve, Latching Speed Valve, Mounting Hardware
Closer Mounting Style
Parallel, Regular, Top Frame
Interior Door Width
48 in
Closer Performance
Heavy Duty
Max. Door Opening
120° to 180°
Closer Series
GAV 1101
Projection from Wall
2 7/8 in
Closing Operation Mode
Hydraulic
Standards
ANSI A156.4 Grade 1, UL and c
Exterior Door Width
36 in
Product Description
This hydraulic door closer is designed for full-surface mounting and interior or exterior installation. It offers non-handed operation, making it suitable for left- or right-hand applications.
Item Barcode
Door Closer,Silver,9-1/16"
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 52JP82 | Door Closer, Silver,9-1/ |
 | UNSPSC CODES | 30171514 | |
 | VMRS (ATA) CODES | 053-006-009 | Door Closer, Silver,9-1/ |
