FILL-RITE

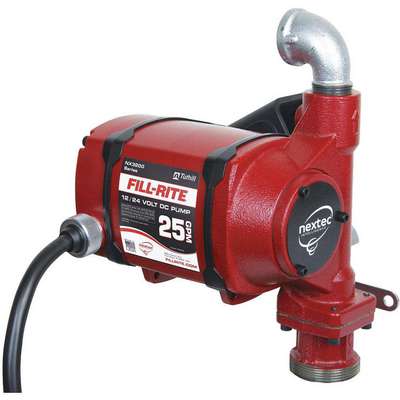

Fuel Transfer Pump: 12 to 24 VDC, 25 GPM, Cast Iron, 1/3 HP
Hover over image to magnify
#927241-2 | Pkg Qty: 1
$1,632.62 pkg | $1,632.62 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Type
Ball
Outside Height
9-1/2 in.
Brand
FILL-RITE
Overall Length
10 in.
Bypass Valve
Yes
Overall Width
13 in.
Compatible Fluids
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits
Package Quantity
1
Duty Cycle
Continuous
Power Cord Length
20 ft.
GPM
25 gpm
Pressure Range
0 to 21 psi
Horsepower
1/3
Pump Design
Rotary Vane
Housing Material
Cast Iron
Pump Mount Size
2 in.
Inlet Size
1-1/4 in FNPT
RPM
3500/400
Item
Fuel Transfer Pump
Seal Material
Buna-N
Maximum Viscosity
200 SSU
Seal Type
Mechanical
Metered
No
Self-Priming
Yes
Mfr. Part Number
NX25-DDCNB-PX
Shipping Weight
34.1 lb.
Mfr. Warranty Length
2 yr
Transfer Pump Application
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Outlet Size
1 in FNPT
Voltage
12 to 24 VDC
General
Features
Automatic Power Down, High Flow Rates, Improved Suction Lift, Intelligent Tones, Light Weight, Low Amp Draw, Magnetic Replaceable Switch, Removable Power Cord
Includes
Power Cord
For Use With
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits
Standards
ATEX , CE, cUL, IECEX
Product Description
The variable speed motor adjusts to load for improved suction lift in this Fill Rite fuel transfer pump. Model has Intelligent Tones™ to inform you when attention is needed and a low amp draw to help save battery power. The auto power down feature shuts down pump after 20 min. of inactivity and the magnetic switch is field replaceable.
Expertly Selected Product Pairings
Documents
Item Barcode
Fuel Pump,1/3 Hp,12 To 24VDC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 429J10 | Fuel Pump,1/ 3 HP,12 to |
 | UNSPSC CODES | 40151532 | |
 | VMRS (ATA) CODES | 053-006-009 | Fuel Pump,1/ 3 HP,12 to |
