HEDLAND

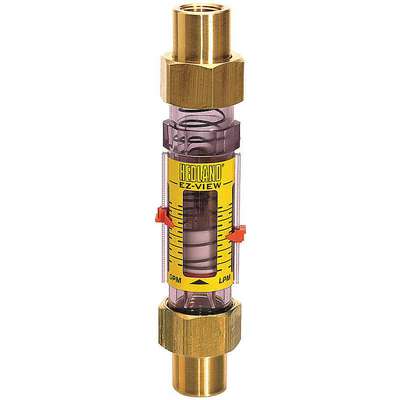

Mechanical Flowmeter: 1/2 in Connection Size, FNPT, Other Liquids/Water, 1 to 10 gpm, Brass

Hover over image to magnify
Flowmeter,Gpm/Lpm  1.0 - 10 /
PI_Asset_1028492
Flowmeter,Gpm/Lpm  1.0 - 10 /
PI_Asset_1028492

#927183-6 | Pkg Qty: 1

$185.53 pkg | $185.53 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HEDLAND
Length
7-3/4 in.
Chamber Material
Polysulfone
Maximum Pressure
325 psi
Connection Size
1/2 in.
Maximum Temperature (Deg. F)
250
Connection Type
FNPT
Maximum Viscosity
500 SSU
Fitting
Brass
Mfr. Part Number
H624-010
Flow Material
Water, Other Liquids
Package Quantity
1
Flow Range
1 to 10 gpm
Seal Material
Buna N
Flowmeter Group
Mechanical Flowmeter
Shipping Weight
1.15 lb.
For Pipe Size
1/2 in.
Specific Gravity
1
Height
1-1/2 in.
Type
Variable Area
Housing Material
Polysulfone
Wetted Materials
C360 Brass, Buna-N, Polysulfone, PVC, PH15-7MO Stainless Steel, T300 Stainless Steel, Strontium
Item
Mechanical Flowmeter
Width
1-1/2 in.
General
Accuracy (%)
+/-5.0 Full Scale
Flowmeter Product Group
Mechanical Flowmeter

Product Description

Providing a quick and direct reading flow rate measurement of liquids in closed piping systems, this HEDLAND EZ-View® mechanical flowmeter is easy to mount in any position without costly flow straighteners or other special plumbing. The transparent body allows visual inspection of the fluid condition as well as viewing of the internal flow indicator relative to a calibrated flow scale. Model doesn’t need electrical connections and provides measurement by creating a predictable differential pressure across a sharp-edged orifice that is located in the piston assembly.
