5" Light-Medium Duty Swivel Plate Caster, 300 lb. Load Rating

Hover over image to magnify

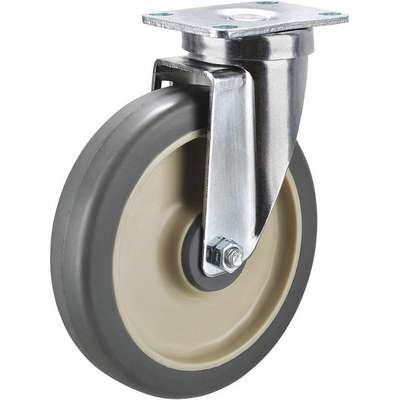

Swivel Plate Caster,5" Dia.,
PI_Asset_1355385
Swivel Plate Caster,5" Dia.,
PI_Asset_1355385

#927155-7 | Pkg Qty: 1

$41.02 pkg | $41.02 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Debris-Resistant Standard Plate Caster
Caster Brake Included
No
Load Rating
300 lb.
Caster Brake Type
No Brake Included
Mfr. Part Number
P12S-RP050B-12-001
Caster Core Material
Plastic
Mounting Bolt Diameter
5/16 in.
Caster Load Rating Range
Light- Medium Duty
Mounting Height
6-3/16 in.
Caster Plate Hole Pattern
C
Non-Marking
Yes
Caster Plate Size
2-1/2 in. x 3-5/8 in.
Number of Mounting Holes
4
Caster Raceway
Double Ball
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
1-3/4 in. x 3-1/16 in.
Caster Wheel Bearings
Precision Ball
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Swivel
Caster Wheel/Tread Material
Thermoplastic Rubber
Shipping Weight
2.04 lb.
Core Color
Gray
Swivel Construction
Kingpin
Durometer
90 Shore A
Wheel Color
Gray
Frame Finish
Zinc Plated
Wheel Diameter
5 in.
Frame Material
Steel
Wheel Width
1-1/4 in.
Inside Bolt Hole Spacing
1-3/4 in. x 2-13/16 in.
Wheel/Tread Hardness Rating
Firm
General
Application
Food Service Racks and Cases, High Temperature Applications, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Mounting Plate Size
2 1/2 in x 3 5/8 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
2 1/2 in x 3 5/8 in (C)
Caster Max. Temp.
300°F
Standards
ICWM
Caster Min. Temp.
-30°F
Swivel Lock Type
No Lock Included
Caster Plate Thickness
1/8"
Swivel Raceway Type
Double Ball
Caster Product Group
Swivel Caster
Thread Guards
Yes
Caster Temp. Range Available
Yes
Tread Shape
Standard
Extended Lead
No
Wheel Bearing Type
Precision Ball
Includes
Thread Guards
Wheel Core Material
Plastic
Load Rating Range
300 to 999 lb
Wheel Dia.
5 in
Mounting Bolt Dia.
5/16 in
Wheel/Tread Hardness
90 Shore A
Mounting Plate Bolt Hole Pattern
C
Wheel/Tread Material
Thermoplastic Rubber

Product Description

Debris-resistant light-duty standard plate casters each have a thread guard that prevents thread and debris from getting into the caster's axle and damaging or contaminating it. This helps extend the life of the casters when they're used in dusty or dirty environments. They are suitable for transporting relatively light loads along smooth, flat surfaces in applications where they won't encounter shock loading, such as laundry rooms, textile factories, offices, retail stores, schools, and government buildings. The casters attach to the bottom of carts, dollies, tables, and similar equipment that will be moved manually at moderate speeds. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
