|Agency Compliance||CSA, NFPA, UL||Media Type||Air, Steam, Water|
|Body Material||Brass||Overall Height||4-21/32 in.|
|Brand||DAYTON||Overall Length||4-5/32 in.|
|Coefficient of Volume||13||Pack Quantity||1|
|Configuration||Normally Closed||Pipe Size - Plumbing||1 in.|
|For Use With||Dayton Solenoid Coils||Valve Design||2-Way|
|Item||Solenoid Valve Less Coil||orifice_Dia._spec_s||1 in.|
|Max. Fluid Temp.||180°F|
- Shipping Weight 4.85 lbs.

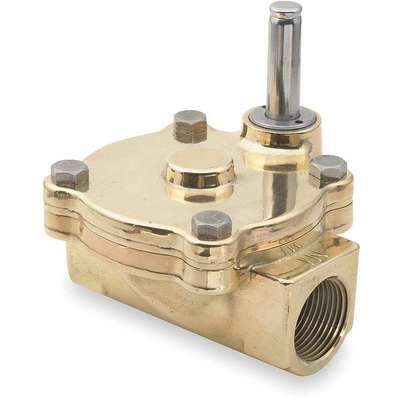

- Item Solenoid Valve Less Coil
- Solenoid Valve Product Group Solenoid Valve Less Coil
- Valve Ways and Positions 2-Way
- Valve Configuration Normally Closed
- Media - Valves Air,Steam,Water
- Pipe Size - Valves 1"
- Min. Operating Pressure Differential 5 psi
- Max. Operating Pressure Differential Air/Inert Gas 125 psi
- Max. Operating Pressure Differential Light Oil 125 psi
- Max. Operating Pressure Differential Water 125 psi
- Environmental Rating - Valves Indoor,Outdoor
- Coefficient of Volume 13.00
- Body Material - Valves Brass
- Seal Material - Valves Buna-N
- Orifice Dia. 1"
- Safe Working Water Pressure 250 psi
- Operation Type Pilot Operated
- Flow Range 29.1 to 145.5 gpm
- Airflow 286 to 910 scfm
- Max. Fluid Temp. 180 Degrees F
- Overall Length 4-5/32"
- Overall Height 4-21/32"
- For Use With Dayton Solenoid Coils
|VMRS (ATA) CODES||053-006-009||Solenoid Valve,2-Way,|
