DAYTON

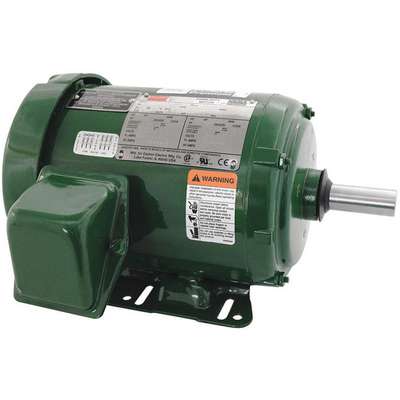

Dayton General Purpose Farm Duty Motor, 2 HP, 3-Phase, Nameplate RPM 1,750, Voltage 230/460V AC

Hover over image to magnify
Farm Motor,2 Hp,1745 Rpm,230/
Farm Motor,2 Hp,1745 Rpm,230/

#927097-8 | Pkg Qty: 1

$955.48 pkg | $955.48 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
UL Recognized (E47479), CSA Certified (225293)
Mounting Position
Horizontal
Bearings
Ball
NEMA/IEC Frame
145T
Brand
DAYTON
Nameplate RPM
1750
Duty
Continuous
Number of Speeds
1
Duty Cycle
Continuous
Overall Length
12-31/32 in.
Enclosure
Totally Enclosed Fan-Cooled
Pack Quantity
1
Frame
143-5T/56HZ
Phase
Three
Full Load Amps
5.7/2.8
Rotation
CW/CCW
Hz
60/50
Service Factor
1-1/4
Insulation Class
F
Shaft Length
2-1/4 in.
Item
General Purpose Farm Duty Motor
Shaft Orientation
Horizontal
Length Less Shaft
10-23/32 in.
Shaft Type
Keyed
Mfr. Part Number
35Z918
Shipping Weight
48.5 lb.
Motor Design
3-Phase
Thermal Protection
None
Motor Type
3-Phase
Type
3-Phase
Mounting
Rigid Base
Voltage
230/460 VAC
General
Amps @ 50 Hz
6.8/3.4
Motor Frame Material
Rolled Steel
Application
Farm Duty
Motor Mounting Position
Horizontal
CC Number
CC030A
Motor Mounting Type
Rigid Base
Conduit Box
Included
Motor Service Factor
1.25
Efficiency Group
Premium
Motor Shaft Design
Keyed
Fan Blade Material
Plastic
Motor Shaft Rotation
CW/CCW
HP
2
Motor Thermal Protection
None
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key
NEMA Design
B
Ins. Class
F
No. of Speeds
1
Max. Ambient Temp.
40 °C
Nominal Efficiency
86.5 %
Motor Application
Farm Duty
RPM Range
1,701-1,800
Motor Bearings
Ball
Shaft Dia.
7/8 in
Motor Efficiency Group
NEMA Premium Efficient
Standards
CSA Certified (258525), UL Recognized (E47479)
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

Product Description

General purpose farm-duty motors are three-phase and don't require starting capacitors, run capacitors, or centrifugal starting switches that can wear out and fail. They operate with a higher torque and greater efficiency than single-phase models of the same HP, rpm, and frame size. Motors are commonly used for augers, air compressors, conveyors, pumps, and other farm equipment. They have enclosures that help protect them from moisture, but they are not airtight or waterproof.
