NTN

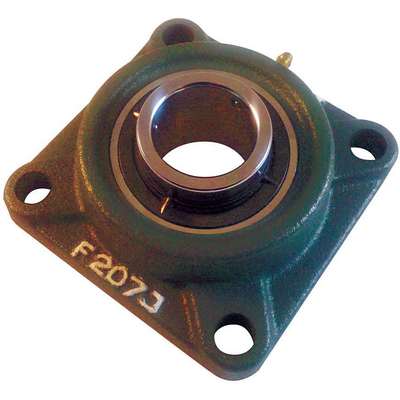

4-Bolt Flange Bearing: 1 15/16" Bore Dia., Set Screw, Cast Iron, 52100 Chrome Steel, Standard Duty

Hover over image to magnify
Flange Bearing,4-Bolt,Ball,1-
Flange Bearing,4-Bolt,Ball,1-

#927097-6 | Pkg Qty: 1

$166.71 pkg | $166.71 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bearing Housing Material Type
Cast Iron
Mfr. Part Number
UCF210-115D1
Bearing Insert Material
52100 Chrome Steel
Overall Height
2-5/32 in.
Bearing Insert Type
Ball
Overall Length
5-5/8 in.
Bearing Lubrication
Shell Alvania #3 or NLGI #3 Equivalent
Overall Width
5-5/8 in.
Bolt Hole Center-to-Center
4-3/8 in. in.
Package Quantity
1
Bolt Size
1/2 in.
Series
Standard Duty
Bore Diameter
1-15/16 in.
Shaft Locking Type
Set Screw
Brand
NTN
Shipping Weight
5.58 lb.
Dynamic Load Capacity
7,900 lb.
Static Load Capacity
5220 lb.
Finish
Painted
Temperature Range
-20 deg. F to 250 deg. F
Item
4-Bolt Flange Bearing
General
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Lubrication Openings
One Zirc Fitting
Back Side to Center Width
0.866 in
Maximum Speed
3,100 RPM
Bearing Material Grade
52100
Maximum Temperature
250 Degrees F
Bore Type
Cylindrical
Minimum Temperature
-40 Degrees F
Brand & Part Number
NTN UCF210-115D1
Mount Hole Center-to-Center Height
4.375 in
Closure
Double Sealed
Mount Hole Center-to-Center Length
4.375 in
Flange Thickness
0.625 in
Mount Hole Size
0.63 in
Housing Material
Cast Iron
Mounting Bolt Size
5/8 in
Housing Material Finish
Painted
Number of Mount Holes
4
Housing Type
Square
Rolling Element Rows
1
Included Bearing
UC210-115D1
Seal Material
Nitrile Rubber
Includes
(4) Set Screws
Seal Type
Contact
Inner Ring Width
5.9 mm
Static Radial Load Capacity
5,216 lbf
Lubricant Material
NLGI
System of Measurement
Inch

Product Description

4-Bolt Flange Bearing, Ball Bearing Insert Type, 1 15/16 in Bore Dia., Bolt Hole Center-to-Center 4 3/8 in, Cast Iron Bearing Housing Material Type, Set Screw Shaft Locking Type, 52100 Chrome Steel Bearing Insert Material, Standard Duty Series, Bolt Size 1/2 in, Overall Height 2 5/32 in, Overall Width 5 5/8 in, Overall Length 5 5/8 in, Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent, Dynamic Load Capacity 7,900 lb, Static Load Capacity 5,220 lb
