HUBBELL WIRING DEVICE-KELLEMS

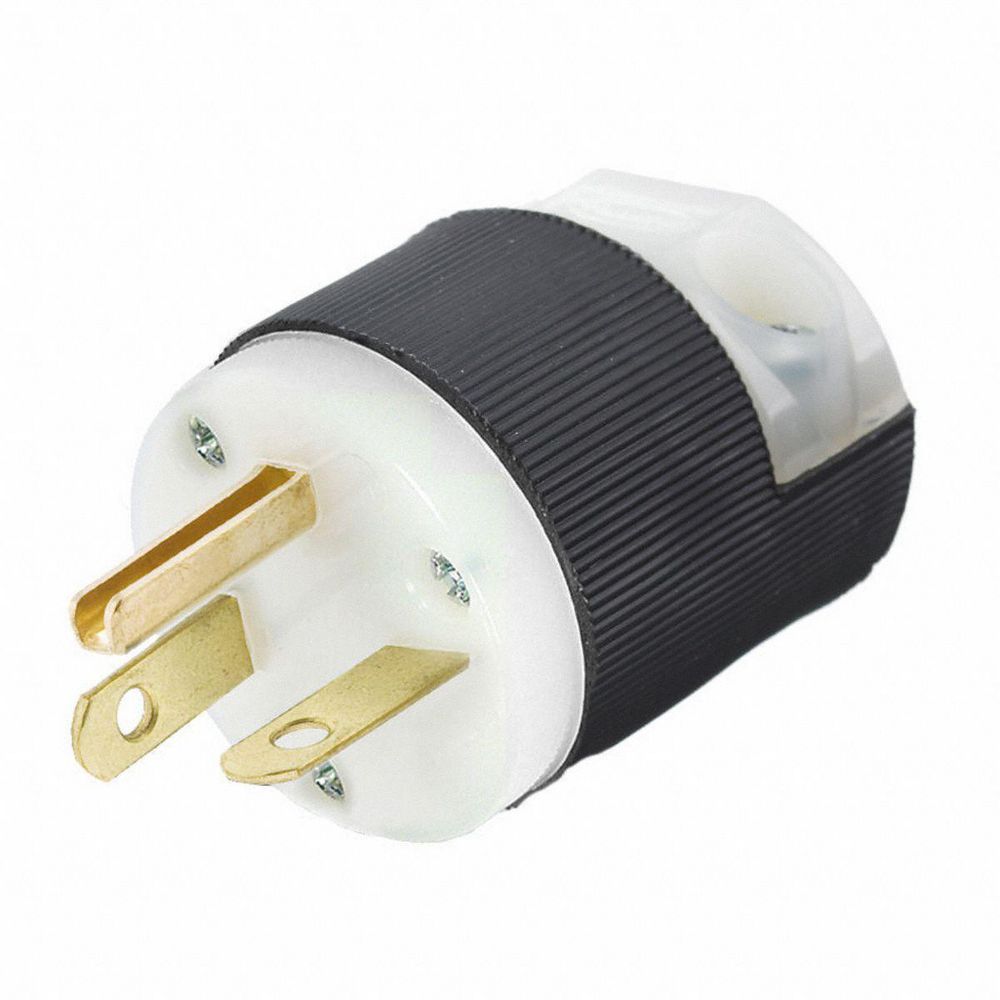

Hubbell Wiring Device-Kellems 20A Industrial Grade Straight Blade Plug, Black/White; NEMA Configuration: 6-20P

Hover over image to magnify
Plug,6-20P,20A,250V
PI_Asset_1982968
Plug,6-20P,20A,250V
PI_Asset_1982968

#927086-3 | Pkg Qty: 1

$41.24 pkg | $41.24 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps
20 A
Maximum Wire Size
10 AWG
Antimicrobial
No
Mfr. Part Number
HBL5466C
Body Length
1.97 in.
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
6-20
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.230 in. to 0.720 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
3
Current Rating
20 A
Outside Diameter
1.53 in.
Description
Insulgrip, Grounding
Package Quantity
1
For Maximum Cable Diameter
0.72 in.
Phase
Single
For Minimum Cable Diameter
0.23 in.
Polarized
Yes
Grade
Industrial
Shipping Weight
.01 lb.
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706
Horsepower
2 hp
Subcategory
Plugs
Housing Material
Nylon
Type
Insulgrip
IP Rating
IP20
UL 94 Flammability Rating
HB
Insulation Material
Nylon
Voltage
250V AC
Item
Straight Blade Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
20 A
Phase - Plugs and Receptacles
1
Grade - Plugs and Receptacles
Industrial
Sub-Category
Plugs
HP
2.0
Voltage - Plugs and Receptacles
250V AC
NEMA Plug Configuration - Plugs and Receptacles
6-20P

Product Description

NEMA Straight-Blade Plugs and Connectors

  • CSA Certified.
  • Insulgrip®
  • The original black-and-white plug and connector that was developed for industrial cord ends. Tough, ribbed nylon housing withstands heavy abuse and holds securely without slippage. Powerful Vari-size® cord grip adjusts to a wide range of cord sizes, 10/3 SO to 18/3 SJ. "Picture Window" wiring gives visual assurance that conductors are inserted and terminated correctly.
