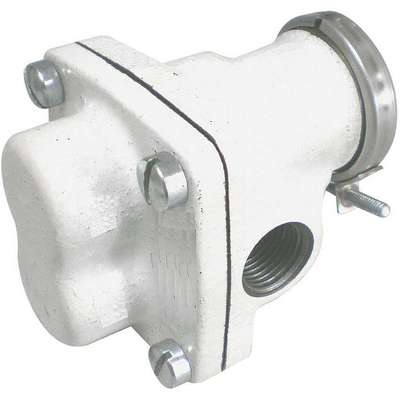

1/2" Intermediate-Duty Cast Iron Rotary Gear Pump Head, Carbonator Mount Design, 40 psi

Name: 1/2" Intermediate-Duty Cast Iron Rotary Gear Pump Head, Carbonator Mount Design, 40 psi
Brand: DAYTON
SKU: 9270650
Price: 392.51 USD
Availability: InStock

Hover over image to magnify

#927065 | Pkg Qty: 1

$392.51 pkg | $392.51 ea

Technical Specifications

Key Specifications

Application

For Use In Commercial Fat Fryers, Filtration Processes, and Cooking Oil Waste Removal, Not For Use With Water-Based Fluids

Maximum Viscosity

100 SSU

Brand

DAYTON

Motor Frame

Carbonator Mount

Design

Carbonator Mount

O-Ring

Viton

Duty Rating

Intermediate

O-Ring Material

Viton

GPM @ 20 PSI

4.6

Pack Quantity

GPM @ 25 PSI

4-1/2

Port Size

1/2 in.

GPM @ 40 PSI

4.4

Pump Body Material

Cast Iron

GPM @ 60 PSI

Pump RPM

1725

GPM @ Freeflow

5.2

Recommended Motor HP

1/2

GPM @ Freeflow @ 1725 RPM

5.2

Relief Valve

Without

Gear

Spur

Seal

Viton Lip

Height

3 in.

Shaft Material

Stainless Steel

Includes

Extra Mechanical Seal

Suction Lift

6.2 ft.

Item

Rotary Gear Pump Head

Suction Lift @ 1725 RPM

6.2 ft.

Length

4-5/16 in.

Temperature Range

40 deg. to 375 deg. F

Manufacturers Warranty Length

1 Year

Type

No Motor

Maximum Pressure

40 psi

Width

3 in.

Maximum Temperature (Deg. F)

375

General

Application

For Use In Commercial Fat Fryers, Filtration Processes, and Cooking Oil Waste Removal, Not For Use With Water-Based Fluids

Shaft Dia.

0.5 in

Product Description

Designed to be mounted to a carbonator pump motor, this bidirectional pump provides a near-pulseless flow in intermittent-duty commercial hot oil transfer applications. Featuring spur gears, the nonclogging pump has the ability to pass nonabrasive particulates and reduce oil shear. It is suitable for use in commercial fat fryers, filtration processes, and cooking oil waste removal. It is not for use with water-based fluids.

Compliance & Restrictions

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Item Barcode

Gear Pump Head, Nsf Listed

Cross References
Legal

Name	Item	Description
Grainger Dropship	6DHH7	Gear Pump Head, NSF
UNSPSC CODES	40151521
VMRS (ATA) CODES	053-006-009	Gear Pump Head, NSF
