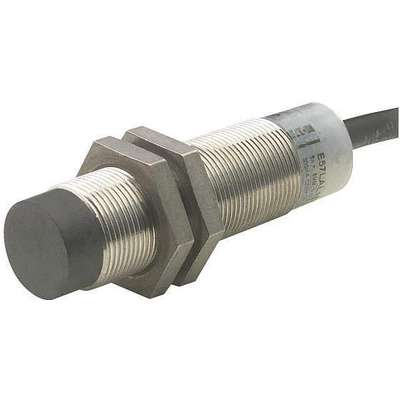

500 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 20.0mm

500 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 20.0mm

#927038-6 | Pkg Qty: 1

$256.20 pkg | $256.20 ea
Item Number 927038-6
Scanner Description Proximity Sensor,Inductive,
Inventory Status Drop Ship Item
Weight 0.15 lb
Brand EATON

Technical Specifications

Basic Material
Metal
Output Mode
NO
Basic Proximity Sensor Case Material
Metal
Pack Quantity
1
Brand
EATON
Power Requirement
6 to 48VDC
Case
Stainless Steel
Proximity Sensing Method
Inductive
Case Material
303 Stainless Steel
Proximity Sensor Diameter
18.0mm
Circuit Type
3 Wire PNP
Proximity Sensor Electrical Connection
4 Pin Micro DC Connector
Description/Special Features
360° Viewable LED Output Indication
Proximity Sensor Operating Frequency
500 Hz
Detecting Distance
20mm
Proximity Sensor Output Circuit Type
3 Wire PNP
Diameter
18 mm
Proximity Sensor Power Requirement
6 to 48VDC
Electrical Connection
4 Pin Micro DC Connector
Proximity Sensor Style
Cylindrical Proximity Sensor
IP Rating
67
Sensing Method
Inductive
Item
Cylindrical Proximity Sensor
Sensor Type
Inductive
Length
2.74 in.
Shield
Unshielded
Max. Current Load
500mA
Shielded/Unshielded
Unshielded
Max. Detecting Distance
20 mm
Standards
cUL Listed, CE Compliance
Max. Load
250 lb.
Temp. Range (F)
-13 to 158
Mfr. Part Number
E57-18LE20-BD
Type
Cylindrical
NEMA Rating
4, 4X, 6, 6P, 12, 13
Voltage Range
6-48VDC
NEMA Type
4, 4X, 6, 6P, 12 and 13 (IP67)
Voltage Type
DC
Operating Frequency
500 Hz
Warranty
2ACC6
Operating Temp Range
-13° to 158°F

Product Description

This cylindrical proximity sensor is designed for use with metallic targets. It features stainless steel construction and LED status indicator, and is engineered to resist the ingress of solid foreign objects such as dirt, dust, lint, fibers, and flyings. It also helps to resist damage from the ingress of water from spraying or submersion, as well as splashing and seepage of oil and coolants.
