HUBBELL WIRING DEVICE-KELLEMS

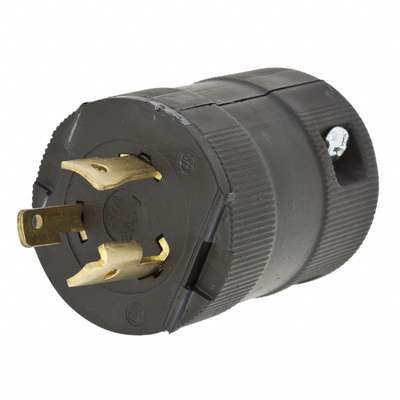

Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Locking Plug, Black; NEMA Configuration: L6-20P
Hover over image to magnify
#927000 | Pkg Qty: 1
$19.85 pkg | $19.85 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Material
Nylon
Antimicrobial
No
Maximum Operating Temperature
75 °C
Blade Material
Brass
Maximum Wire Size
10 AWG
Body Length
1.78 in.
Mfr. Part Number
HBL2321VBK
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Operating Temperature
-40 °C
Color Family
Black
Minimum Wire Size
18 AWG
Connection Orientation
Straight
NEMA Configuration - Plugs & Connectors
L6-20
Cord Size
0.360 in. to 0.930 in.
NEMA Plug Configuration
L6-20P
Corrosion Resistant
No
Number of Blades
3
Current Rating
20 A
Number of Poles
2
Description
Valise, Grounding
Number of Wires
3
Face Diameter
1.781 in.
Overall Length
1.78 in.
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Single
For Maximum Cable Diameter
0.72 in.
Polarized
Yes
For Minimum Cable Diameter
0.325 in.
Shipping Weight
.3 lb.
Grade
Industrial
Shrouded
No
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
HP
2 HP
Subcategory
Plugs
Horsepower
2 hp
UL 94 Flammability Rating
HB
Housing Color
Black
Voltage
250V AC
Housing Material
Nylon
Wire Connection Type
Screw Terminals
IP Rating
IP20
Wiring Style
Hinged
Item
Locking Plug
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L6-20P
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
250V AC
HP
2.0
Product Description
Locking Plug, Wiring Style Hinged, Shrouded / Non-Shrouded Non-Shrouded, Grade - Plugs and Receptacles Industrial, 250V AC, Number of Poles 2, Number of Wires 3, L6-20P, Black, Amps - Plugs and Receptacles 20, Corrosion Resistant No, Antimicrobial No, Cord Size 0.360 in to 0.930 in, IP Rating 20, 1 Phase, HP 2.0, Material Nylon
Expertly Selected Product Pairings
Item Barcode
Plug,250V,20A,L6-20P,2P,3W,1PH
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4HD26 | Plug,250V, 20A,L6-20P, |
 | UNSPSC CODES | 39121403 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,250V, 20A,L6-20P, |
