HUBBELL WIRING DEVICE-KELLEMS

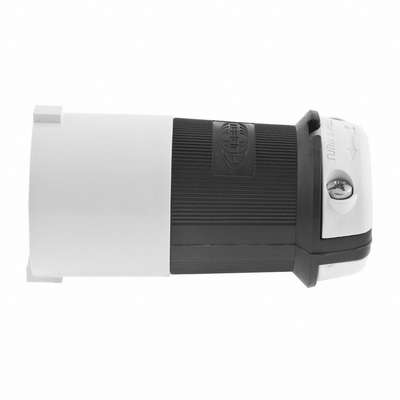

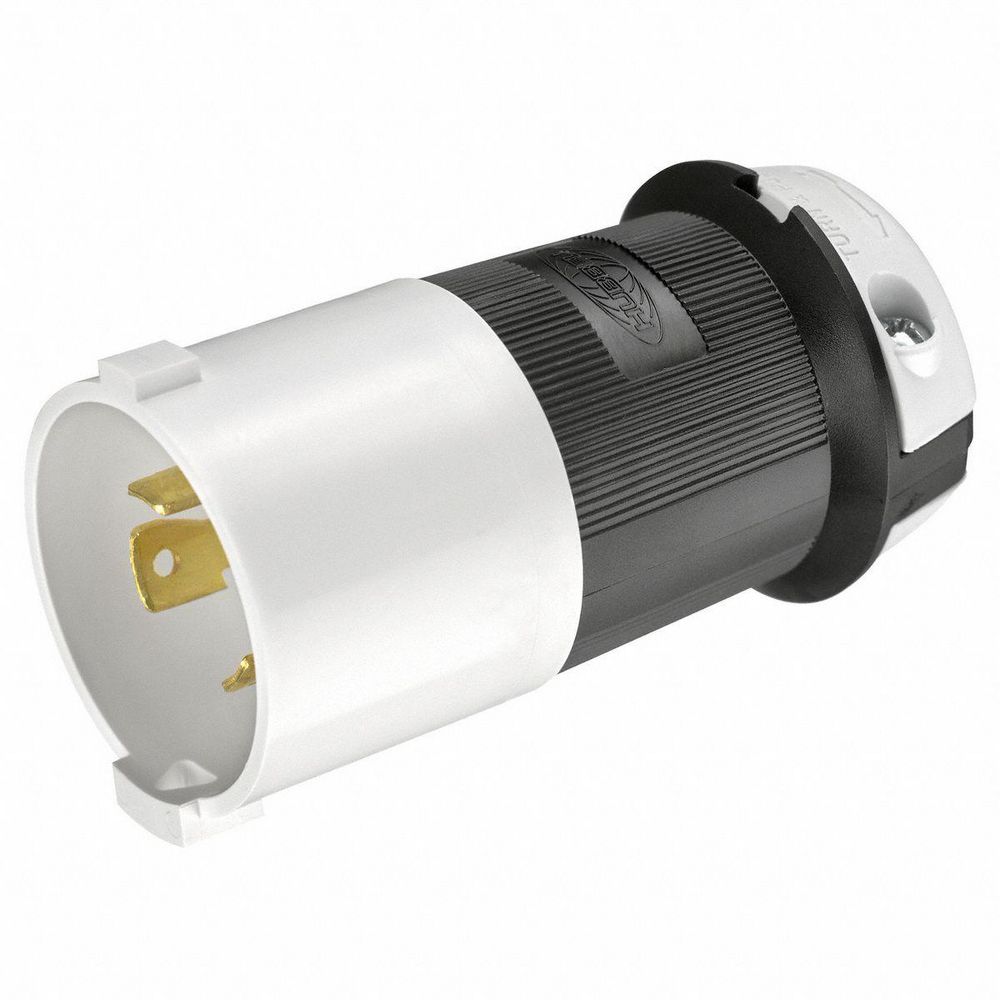

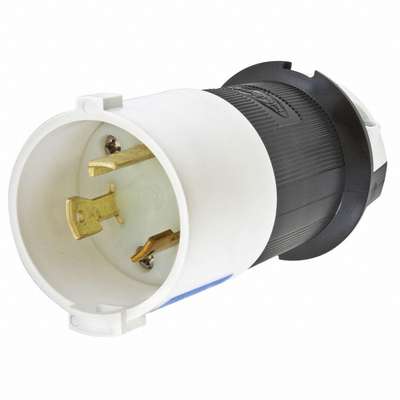

Hubbell Wiring Device-Kellems 30A Industrial Grade Shrouded Locking Plug, Black/White; NEMA Configuration: L6-30P
#926991-5Pkg Qty: 1
$63.84 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Antimicrobial
No
Brand
HUBBELL WIRING DEVICE-KELLEMS
Color Family
Black / White
Cord Size
0.360 in. to 0.930 in.
Corrosion Resistant
No
Grade
Industrial
Housing Material
Nylon
IP Rating
IP20
Item
Locking Plug
Mfr. Part Number
HBL2621S
NEMA Configuration - Plugs & Connectors
L6-30
NEMA Plug Configuration
L6-30P
Number of Poles
2
Number of Wires
3
Package Quantity
1
Phase
Single
Product Type
Plugs
Shipping Weight
.4 lb.
Voltage
250V AC
Wiring Style
Standard
Amperage
30 A
NEMA Configuration - Plugs & Connectors
L6-30
Antimicrobial
No
NEMA Plug Configuration
L6-30P
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Poles
2
Color Family
Black / White
Number of Wires
3
Cord Size
0.360 in. to 0.930 in.
Package Quantity
1
Corrosion Resistant
No
Phase
Single
Grade
Industrial
Product Type
Plugs
Housing Material
Nylon
Shipping Weight
.4 lb.
IP Rating
IP20
Voltage
250V AC
Item
Locking Plug
Wiring Style
Standard
Mfr. Part Number
HBL2621S
General
Amps - Plugs and Receptacles
30
Blade Material
Brass
Body Length
2.26 in.
Connection Orientation
Straight
Current Rating
30 A
Description
Grounding
Face Diameter
2.04 in.
For Environment
Dry
Grounding
Grounded
HP
2.0
HP
2.0 HP
Horsepower
2 hp
Material
Nylon
Maximum Operating Temperature
75 °C
Maximum Wire Size
8 AWG
Minimum Operating Temperature
-40 °C
Minimum Wire Size
16 AWG
NEMA Plug Configuration - Plugs and Receptacles
L6-30P
Number of Blades
3
Outside Diameter
2.26 in.
Overall Length
2.26 in.
Polarized
Yes
Shrouded
Yes
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
UL 94 Flammability Rating
HB
Wire Connection Type
Screw Terminals
Amps - Plugs and Receptacles
30
Maximum Operating Temperature
75 °C
Blade Material
Brass
Maximum Wire Size
8 AWG
Body Length
2.26 in.
Minimum Operating Temperature
-40 °C
Connection Orientation
Straight
Minimum Wire Size
16 AWG
Current Rating
30 A
NEMA Plug Configuration - Plugs and Receptacles
L6-30P
Description
Grounding
Number of Blades
3
Face Diameter
2.04 in.
Outside Diameter
2.26 in.
For Environment
Dry
Overall Length
2.26 in.
Grounding
Grounded
Polarized
Yes
HP
2.0
Shrouded
Yes
HP
2.0 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
2 hp
UL 94 Flammability Rating
HB
Material
Nylon
Wire Connection Type
Screw Terminals
Product Description
Install a Safety-Shroud Twist-Lock® molded thermoplastic shroud to help eliminate any possible user contact with energized or partially connected plugs, and to keep blades from bending.
