HUBBELL WIRING DEVICE-KELLEMS

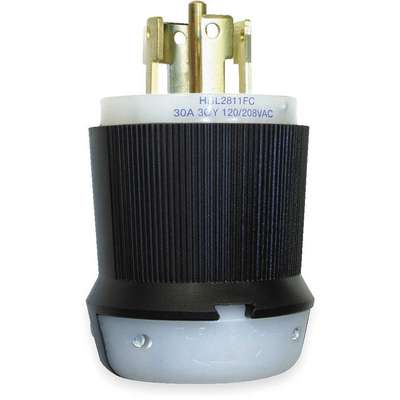

Hubbell Wiring Device-Kellems 30A Industrial Grade Non-Shrouded Locking Plug, Black/White; NEMA Configuration: L21-30P
Hover over image to magnify
#926989-2 | Pkg Qty: 1
$81.32 pkg | $81.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Maximum Operating Temperature
75 °C
Antimicrobial
No
Maximum Wire Size
8 AWG
Blade Material
Brass
Mfr. Part Number
HBL2811FC
Body Length
2-3/4 in.
Minimum Operating Temperature
-40 °C
Body Material
Nylon
Minimum Wire Size
16 AWG
Boot Code
C
NEMA Configuration - Plugs & Connectors
L21-30
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
L21-30P
Color Family
Black / White
Number of Blades
5
Connection Orientation
Straight
Number of Poles
4
Cord Size
0.350 in. to 1.150 in.
Number of Wires
5
Corrosion Resistant
No
Outside Diameter
2.33 in.
Current Rating
30 A
Overall Length
2.75 in.
Description
Designed for Flat Cable
Package Quantity
1
Face Diameter
2.21 in.
Phase
Three
For Environment
Dry
Polarized
Yes
For Location
Indoor
Shipping Weight
.4 lb.
For Maximum Cable Diameter
1.15 in.
Shrouded
No
For Minimum Cable Diameter
0.35 in.
Special Features
For Flat Cable
Grade
Industrial
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Grounding
Grounded
Subcategory
Plugs
HP
3 HP
Type
Single, Flat Cable
Horsepower
3 hp
UL 94 Flammability Rating
HB
Housing Material
Nylon
Voltage
120/208V AC
IP Rating
IP20
Wire Connection Type
Screw Terminals
Item
Locking Plug
Wiring Style
Standard
Material
Nylon
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L21-30P
Grade - Plugs and Receptacles
Industrial
Special Features
For Flat Cable
HP
3.0
Voltage - Plugs and Receptacles
120/208V AC
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Plug,120/208VAC,30A,L21-30P,4P,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1DNW2 | Plug,120/ 208VAC,30A, |
 | UNSPSC CODES | 26121624 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,120/ 208VAC,30A, |
