HUBBELL WIRING DEVICE-KELLEMS

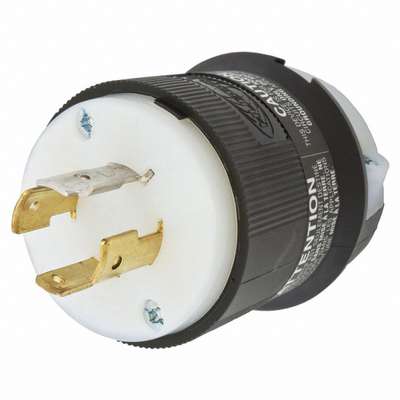

Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Locking Plug, Black/White; NEMA Configuration: L18-20P

Hover over image to magnify
Plug,120/208VAC,20A,L18-20P,4P,
PI_Asset_1982018
Plug,120/208VAC,20A,L18-20P,4P,
PI_Asset_1982018

#926988-8 | Pkg Qty: 1

$64.09 pkg | $64.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
20 A
Material
Nylon
Antimicrobial
No
Maximum Operating Temperature
75 °C
Blade Material
Brass
Maximum Wire Size
8 AWG
Body Length
2.33 in.
Mfr. Part Number
HBL2441
Boot Code
C
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
16 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
L18-20
Connection Orientation
Straight
NEMA Plug Configuration
L18-20P
Cord Size
0.350 in. to 1.150 in.
Number of Blades
4
Corrosion Resistant
No
Number of Poles
4
Current Rating
20 A
Number of Wires
4
Description
Insulgrip, Non-Grounding
Outside Diameter
2.33 in.
Face Diameter
2.21 in.
Overall Length
2.33 in.
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Three
For Maximum Cable Diameter
1.15 in.
Polarized
Yes
For Minimum Cable Diameter
0.35 in.
Shipping Weight
.25 lb.
Grade
Industrial
Shrouded
No
Grounding
Non-Grounded
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
HP
2 HP
Subcategory
Plugs
Horsepower
2 hp
UL 94 Flammability Rating
HB
Housing Material
Nylon
Voltage
120/208V AC
IP Rating
IP20
Wire Connection Type
Screw Terminals
Item
Locking Plug
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L18-20P
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
120/208V AC
HP
2.0

Product Description

NEMA Twist-Lock® Devices

  • Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
