HUBBELL WIRING DEVICE-KELLEMS

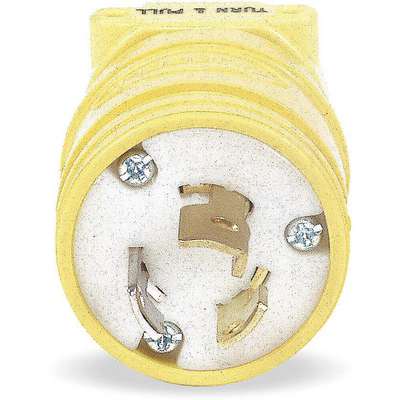

Hubbell Wiring Device-Kellems 15A Industrial Grade Non-Shrouded Locking Plug, Yellow; NEMA Configuration: L5-15P
Hover over image to magnify
#926988 | Pkg Qty: 1
$24.70 pkg | $24.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Maximum Operating Temperature
75 °C
Antimicrobial
No
Maximum Wire Size
10 AWG
Blade Material
Brass
Mfr. Part Number
HBL2447
Body Length
2.19 in.
Minimum Operating Temperature
-40 °C
Body Material
Nylon
Minimum Wire Size
18 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L5-15
Color Family
Yellow
NEMA Plug Configuration
L5-15P
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.300 in. to 0.655 in.
Number of Poles
2
Corrosion Resistant
No
Number of Wires
3
Current Rating
15 A
Outside Diameter
1.55 in.
Description
Elasto-Grip, Grounding
Overall Length
2.19 in.
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Single
For Maximum Cable Diameter
0.655 in.
Polarized
Yes
For Minimum Cable Diameter
0.3 in.
Shipping Weight
.15 lb.
Grade
Industrial
Shrouded
Yes
Grounding
Grounded
Special Features
Moisture, Dust and Weather Resistant
HP
1/2 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
1/2 hp
Subcategory
Plugs
Housing Color
Yellow
UL 94 Flammability Rating
HB
Housing Material
Elastomer
Voltage
125V AC
IP Rating
IP20
Wire Connection Type
Screw Terminals
Item
Locking Plug
Wiring Style
Standard
Material
Nylon
General
Amps - Plugs and Receptacles
15
NEMA Plug Configuration - Plugs and Receptacles
L5-15P
Grade - Plugs and Receptacles
Industrial
Special Features
Moisture, Dust and Weather Resistant
HP
0.5
Voltage - Plugs and Receptacles
125V AC
Product Description
Locking Devices
- Hubbell NEMA Devices
- Impact- and crush-resistant nylon construction withstands industrial chemicals, solvents, and hydrocarbons. Plugs and connectors have 2-part offset jaw cord grips and totally insulated dead-front construction. Receptacles have a thermoplastic base, all-brass grounding system, and 1-pc. contact with long spring arm and oxide cutting nibs. CSA Certified.
Expertly Selected Product Pairings
Item Barcode
Plug,125VAC,15A,L5-15P,2P,3W,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3D054 | Plug,125VAC, 15A,L5-15P, |
 | UNSPSC CODES | 39121403 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,125VAC, 15A,L5-15P, |
