DAYTON

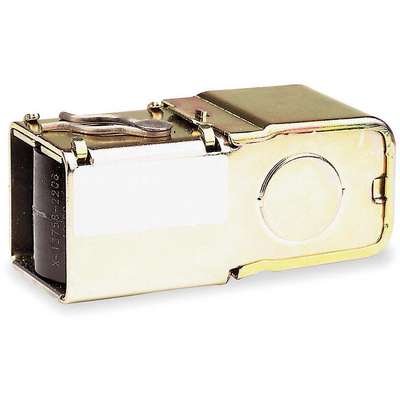

Solenoid Valve Coil, Coil Insulation Class H, 24 VAC Voltage, 12 Watts

Hover over image to magnify
Solenoid Valve Coil,24VAC,60/
PI_Asset_968110
Solenoid Valve Coil,24VAC,60/
PI_Asset_968110

#926936-3 | Pkg Qty: 1

$88.79 pkg | $88.79 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
DAYTON
NEMA Rating
1
Hz
50/60
Package Quantity
1
Item
Solenoid Valve Coil
Shipping Weight
.66 lb.
Mfr. Part Number
11218
Voltage
24 VAC
General
Application
Designed To Fit Dayton Solenoid Valve Bodies Only
For Use With
Dayton Solenoid Valve Bodies Only
Coil Enclosure
General Purpose Junction Box
Solenoid Valve Product Group
Solenoid Valve Coil
Coil Insulation Class
H

Product Description

Solenoid Valve Coils For Dayton® solenoid valves on pages 4020 only. Continuous duty coils, for Class F, H, and B insulation with NEMA coil enclosure. Coils and valves, when assembled, are For steam valves, use Class H coil. 12 and 24VDC coils have integral pulse modulation circuit for the same OPD ratings as AC coils. CSA Certified, except Part Numbers: 3PU19 and 3PU18 are . WARNING: Not for use in hazardous atmospheres.
