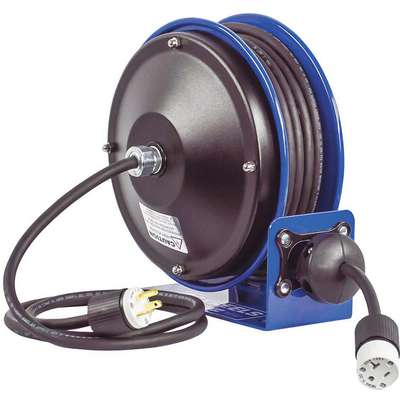

Coxreels 30 ft. Compact Retractable Cord Reel; Industrial Grade; 120 VAC; Blue Reel Color

Hover over image to magnify
Cord Reel,30 Ft,16/3,Sjo,Blue,
PI_Asset_948352
PI_Asset_980347
PI_Asset_980348
PI_Asset_980349
PI_Asset_980350
PI_Asset_980351
PI_Asset_980352
PI_Asset_980353
Cord Reel,30 Ft,16/3,Sjo,Blue,
PI_Asset_948352
PI_Asset_980347
PI_Asset_980348
PI_Asset_980349
PI_Asset_980350
PI_Asset_980351
PI_Asset_980352
PI_Asset_980353
Coxreels 30 ft. Compact Retractable Cord Reel; Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 30 ft. Compact Retractable Cord Reel; Industrial Grade; 120 VAC; Blue Reel Color Video

#926924-4 | Pkg Qty: 1

$657.58 pkg | $657.58 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
COXREELS
NEC Cord Designation
SJO
Cord Color
Black
NEMA Connector
5-20R
Cord Ending
5-20R
NEMA Plug Configuration
5-20P
Cord Ending NEMA Configuration
5-20R
NEMA Receptacle Configuration
5-20R
Cord Included
Yes
Number of Conductors
3
Cord Length
30 ft.
Number of Outlets
1
Cord Type
SJO
Overall Depth
7-3/8 in.
Depth
7-3/8 in.
Overall Height
10-5/8 in.
Description/Special Features
Single Receptacle
Overall Width
10-1/2 in.
Enclosed Reel
No
Package Quantity
1
Enclosure Rating
Not Rated
Reel Color
Blue
Feeder Cord Ending
Grounding Plug
Reel Material
Steel
Feeder Cord Ending NEMA Configuration
5-20P
Reel Mounting
Bench, Floor, Wall
Feeder Cord Length
5 ft.
Shipping Weight
16.3 lb.
Gauge/Conductor
16/3
Slip Ring Rating
115 V
Grade
Industrial
Type
Spring Retractable
Height
10-5/8 in.
Voltage
120 VAC
Indoor/Outdoor
Indoor
Watts
1495 W
Item
Compact Retractable Cord Reel
Width
10-1/2 in.
Maximum Amps
13
Wire Size
16 AWG
Mfr. Part Number
PC10-3016-A
General
Cord Length - Ext. Cords and Outlet Strips
30 ft.
NEC Cord Designation - Ext. Cords and Outlet Strips
SJO
Features
Single Receptacle
Retractable Cord Ending
Single Connector
Feeder Cord Ending Configuration
NEMA 5-15P
Retractable Cord Ending Configuration
NEMA 5-15R
Gauge/Conductor - Ext. Cords and Outlet Strips
16/3
Retractable Cord Length
30 ft
Grade - Ext. Cords and Outlet Strips
Industrial
Tension Method
Ratchet Lock
Includes Cord
Yes
Trade Designation
SJO
Indoor / Outdoor
Indoor
Voltage - Ext. Cords and Outlet Strips
120VAC
Location
Indoor
Winding Method
Spring Retraction
Max. Amps - Ext. Cords and Outlet Strips
13.0

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
