DAYTON

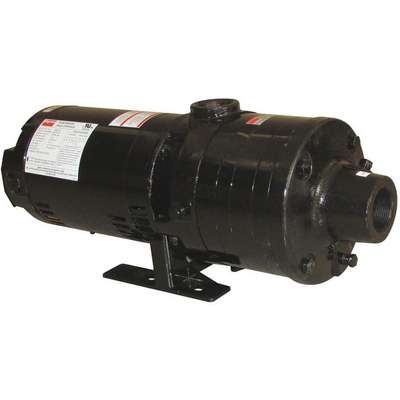

208 to 240/480 VAC Booster Pump, 3-Phase, 92 PSI Max. Pressure, 1-1/2" NPT Inlet Size
Hover over image to magnify
#926908-2 | Pkg Qty: 1
$1,807.20 pkg | $1,807.20 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
cULus
Maximum PSI Boost @ 2-10 GPM
93
Amps
10.1 to 9.2/4.6 A
Maximum PSI Boost @ 20 GPM
91
Bearing Type
Double Sealed
Maximum PSI Boost @ 30 GPM
78
Best Efficiency GPM @ PSI
57 @ 25
Maximum Pressure
92 psi
Booster Pump Type
Booster Pump
Maximum Working Pressure
92
Brand
DAYTON
Mfr. Part Number
45MW31
Duty
Continuous
Mfr. Warranty Length
1 yr.
Frame
56J
Minimum GPM @ PSI
10 @ 90
GPM @ 25 PSI
41
Minimum Inlet Flow Required
2 GPM
GPM @ 30 PSI
39
Motor Ambient Temperature Rating
65°C
GPM @ 35 PSI
38
Motor Enclosure
ODP
GPM @ 40 PSI
37
Motor RPM
3450
GPM @ 50 PSI
33
Motor Type
CSCR
GPM @ 60 PSI
30
NEMA/IEC Frame
56J
GPM @ 80 PSI
16
Number of Stages
3
GPM of Water @ 70 PSI
22
Outlet
1-1/4 in.
Height
8-1/2 in.
Outlet Size
1-1/4 in. NPT
Horsepower
3
Package Quantity
1
Housing Material
Cast Iron
Phase
3
Hz
60
Seal Material
Stainless Steel, Buna, Carbon/Silicon Carbide
Impeller Material
Stainless Steel
Seal Type
Mechanical
Impeller Type
Closed
Shaft Material
Stainless Steel
Inlet
1-1/2 in.
Shipping Weight
95 lb.
Item
Booster Pump
Stages
3
Length
22-7/16 in.
Suction Lift
25 ft.
Maximum Case Pressure
160 psi
Type
Booster
Maximum Fluid Viscosity
31 SSU
Voltage
208 to 240/480 VAC
Maximum GPM @ PSI
41 @ 25
Wetted Materials
Cast Iron, Stainless Steel, Buna N, Carbon, Ceramic
Maximum Inlet Pressure
65
Width
6-1/2 in.
General
Application
Pressure Boosting, Pressure Cleaning, Spray or Mist Systems, Reverse Osmosis, Water Circulation
Intake Size
1 1/2 in
Best Efficiency Pressure
25 psi
Intake Type
NPT
Case Pressure (Maximum)
160 psi
Intake and Discharge Size
1 1/2 in , 1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Maximum Media Temperature
200 Degrees F
Compatible with Media Type
Water
Motor Ambient Temperature (Maximum)
149 Degrees F
Discharge Type
NPT
Motor Ambient Temperature (Minimum)
65 Degrees F
Flow Rate @ 30 psi
39 gpm
Motor Enclosure Type
ODP
Flow Rate @ 40 psi
37 gpm
Motor Frame Designation
56J NEMA
Flow Rate @ 50 psi
33 gpm
Mounting Orientation
Horizontal
Flow Rate @ 60 psi
30 gpm
Nameplate Voltage
208-230/460V AC
Flow Rate @ 70 psi
22 gpm
Nominal Voltage
208-230/460V AC
Flow Rate @ 80 psi
16 gpm
Pressure Boost (Maximum)
93 psi
Flow Rate @ 90 psi
10 gpm
Priming
Manual
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
Pump Housing Material
Cast Iron
For Use With Potable Systems
No
Pumping Application
General Service in Farm, Liquid Transfer, Pressure Boosting, Water Supply
For Use With Systems
Non-Potable
Shut Off Pressure (Maximum)
92 psi
Impeller Design
Closed
Suction Lift (Maximum)
25 ft
Includes
Manual
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Product Description
This Dayton® pressure booster pump is non-self-priming and can lift water up to 25 ft. with foot valve and pump suction line/piping filled with water. Continuous-duty motor can boost pressure for high-flow applications. Model is equipped for applications that require higher pressures.
