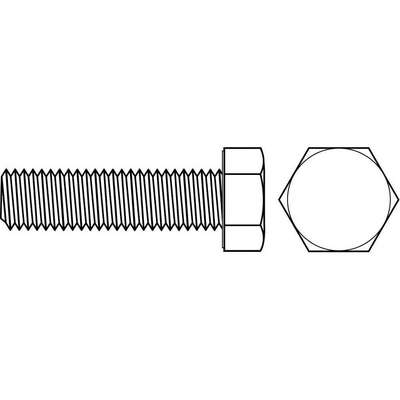

Hex Head Cap Screw: Steel, Class 8.8, Zinc Plated, M4-0.70 Thread Size, Coarse, 50 mm Fastener Lg
Hover over image to magnify
#926902 | Pkg Qty: 100
$25.57 pkg | $0.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Steel
Height
2.8 mm
Brand
APPROVED SUPPLIER
Item
Cap Screw
Country of Origin
Varies (subject to change)
Length Under Head
50 mm
Diameter/Thread Size
M4-0.70
Mfr. Part Number
HC38040500-100P
Fastener Diameter
4 mm
Package Quantity
100
Fastener Head Height
2.8 mm
Rockwell Hardness
C22 to C32
Fastener Material Grade/Class
Class 8.8
Shipping Weight
1 lb.
Fastener Thread Style
Partially Threaded
System of Measurement
Metric
Finish
Zinc Plated
Thread Direction
Right
Head Height
2.8 mm
Thread Length
31.7 mm
Head Type
Hex Head
Thread Type
Coarse/ USS/ UNC
Head Width
13/50 mm
Width
7 mm
General
Application
General Purpose
Meets/Exceeds
DIN 933
Head and Washer Height
2.8 mm
Minimum Thread Length
50 mm
Material
Carbon Steel
Threadlocker Maximum Temperature
0.7 mm
Product Description
Hex Head Cap Screws feature hexagon-shaped heads for socket or wrench tightening. Class 8.8 steel cap screws are quenched and tempered. They are hard, yet malleable, allowing them to withstand shear force. Class 8.8 steel cap screws are comparable to Grade 5 steel cap screws.
Documents
Item Barcode
Hex Cap Screw,M4-0.70,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 22A706 | Hex Cap Screw,M4-0. |
 | UNSPSC CODES | 31161518 | |
 | VMRS (ATA) CODES | 053-007-005 | Hex Cap Screw,M4-0. |
