DAYTON

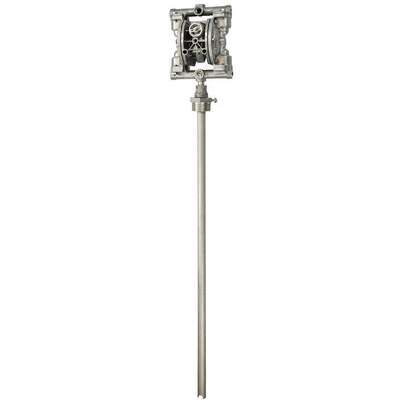

Air Operated Drum Pump, Basic Pump with Discharge Hose, For Container Type Drum

Hover over image to magnify
Drum Pump,Inlet 1/2",Max. Flow
Drum Pump,Inlet 1/2",Max. Flow

#926898-2 | Pkg Qty: 1

$911.37 pkg | $911.37 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adapter Diameter
2 in.
Maximum Air Inlet PSI
100
Adapter Material
Aluminum
Maximum Flow (GPM)
15
Adapter Type
Bung
Maximum GPM for Oil
14-1/2
Air Inlet Size
1/4 in. FNPT
Maximum GPM for Water
15
Brand
DAYTON
Maximum Head
231 ft.
DEF Compatible
Yes
Maximum Liquid Temperature
225°F
Delivers
3000 CPS
Maximum Pressure
100 psi
Discharge Size
1/2
Mfr. Part Number
53JU98
Discharge Tube Length
10 ft.
Mfr. Warranty Length
1 yr.
Discharge Tube Outlet ID Size
1/2 in.
Outlet Size
1/2 in.
Discharge Tube Outlet Outside Diameter
3/4 in.
Package Quantity
1
Discharge Tubing Material
PVC
Ratio
1:1
GPM
15
Seal Material
Hytrel
Height
48-5/8 in.
Self-Priming
Yes
Hose Inside Diameter
1/2 in.
Shipping Weight
21.3 lb.
Hose Length
10 ft.
Suction Tube Outlet Inside Diameter
1/2 in.
Hose Material
PVC
Suction Tube Outlet Outside Diameter
3/4 in.
Housing Material
Aluminum
Wetted Materials
Hytrel
Inlet Size
1/2 in.
Width
7-1/16 in.
Item
Air Operated Drum Pump
General
Adapter Connection Type
FNPT
Includes Suction Tube
Yes
Air Outlet Size
3/8 in
Max. Air Pressure
100 psi
Bung Connection Dia.
2 in
Max. Flow Rate
15 gpm
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Calcium Chloride, Diesel Fuel, E85, Ethyl (Ethanol), Ethylene Glycol, Fresh Water, Gasoline, Heptane, Hexane, Isopropyl (Isopropanol), Lithium Grease, Methyl (Methanol), Motor Oil, Naphtha, Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Turpentine
Max. Fluid Temp.
225 Degrees F
Discharge Connection Type
FNPT
Max. Head - Pumps
231 ft
Discharge Tube Outlet ID
1/2 in
Max. Head Pressure
100 psi
Discharge Tube Outlet OD
3/4 in
Max. Oil Flow
14.5 gpm
For Container Size
55 gal
Max. Outlet Pressure
100 psi
For Container Type
Drum
Max. Viscosity
15,000 cps
For Media Type
Antifreeze, Automatic Transmission Fluid, Calcium Chloride, Diesel Fuel, E85, Ethanol, Ethylene Glycol, Gasoline, Heptane, Hexane, Isopropanol, Lithium Grease, Methanol, Motor Oil, Naphtha, Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Stoddard Solvent, Sulfuric Acid, Turpentine, Water
Min. Air Pressure
20 psi
For Use With
Antifreeze, General Automotive Service Fluids, Hydrocarbons, Motor Oils, Solvents, Used Oils
Noise Level
78 db
Height Above Container
10 in
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetone, Anhydrous Ammonia, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Hydraulic Oils (Petroleum), Hydrazine, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Kerosene, Lacquer Thinners, Methyl Chloride, Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Xylene
Hose Cover Material
PVC
Pump Connection ID
1/2 in
Hose Inside Dia.
1/2 in
Pump Connection OD
3/4 in
Hose Outside Dia.
3/4 in
Pump Connection Type
FNPT
Hose Tube Material
PVC
Pump Package Type
Basic Pump with Discharge Hose
Housing Material - Pumps
Aluminum
Runs Dry
Yes
Includes
Ball Valve, Bung Adaptor Assembly, Dip Tube, Grounding Strap, Hose
Suction Tube ID
1/2 in
Includes Bung Adapter
Yes
Suction Tube Material
Steel
Includes Discharge Hose
Yes
Suction Tube OD
3/4 in

Product Description

Acid, base, and solvent pneumatic drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.
