MILLER ELECTRIC

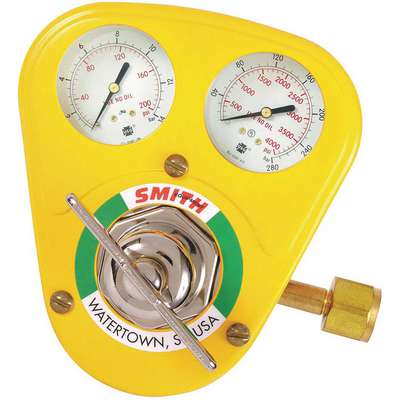

Miller Electric Oxygen, Gas Regulator, CGA-540, Single Stage, Brass, 175 psi
Hover over image to magnify
#926851-7 | Pkg Qty: 1
$483.58 pkg | $483.58 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Item
Gas Regulator
Brand
MILLER ELECTRIC
Mfr. Part Number
40-175-540S
CGA Connection Inlet
540
Outlet Connection
9/16 in.-18 M RH
Cylinder Gas
Oxygen
Overall Length
6 in.
Delivery
175 psi
Package Quantity
1
Delivery Pressure Range
175 psi
Regulator Capacity
Heavy Duty
Diaphragm Material
Stainless Steel
Regulator Supply Type
Cylinder
Gas Service
Oxygen
Series
40
Gauge Size
2 in.
Shipping Weight
9.1 lb.
Gauges Delivery Pressure
200 psi
Stages
Single Stage
Inlet Connection
CGA-540
Supply Pressure Gauge
4000 psi
Inlet Gauge
4000 psi
General
CGA Connection Outlet
9/16"-18 B RH
Inlet Thread Direction
Right Hand
CGA Number
CGA 540
Maximum Gauge Outlet Pressure
4,000 psig
Compatible Gas Type
Oxygen
Mounting Type
Cylinder
Control Type
T-Handle
Number of Stages
Single Stage
Gauge Diameter
2 1/2 in
Outlet Connection Gender
Male
Includes
External Relief Valve, HB190 Hard Hat Gauge Guard, Nickel-Plated Bonnet
Outlet Connection Size
9/16"-18
Inlet Connection Gender
Male
Outlet Connection Type
UNF
Inlet Connection Size
0.825"-14
Outlet Pressure (Maximum)
175 psig
Inlet Connection Type
NGO
Outlet Pressure (Minimum)
0 psig
Inlet Gauge (PSI)
4000
Outlet Thread Direction
Right Hand
Inlet Pressure (Maximum)
3,000 psig
Regulator Application
General Purpose
Product Description
2.5 Inch Corrosion Resistant Polished Brass Gauges with Shatter Resistant Polycarbonate Lenses, Color-Coded Labels, External Relief Valve, Nickel-Plated Bonnet, Resin Bonnet Insert, Stainless Steel Diaphragm, Sure Seat Dual Filtered Seat Assembly
