#926841-5 | Pkg Qty: 1
$61.93 pkg
| $61.93 ea
Technical Specifications
Key Specifications
Brand
WESTWARD
Flute Type
Spiral
Coolant Through
Non-Coolant Through
Grade
General Purpose
Cutting Direction
Right
Item
Reduced Shank Drill Bit
Cutting Direction
Right Hand
Mfr. Part Number
5TVN7
Decimal Equivalent
0.6563
Number of Flutes
2
Depth x Diameter Ratio
4xD
Overall Length
6 in.
Drill Bit Dimension Type
Fractional Inch
Pack Quantity
1
Drill Bit Finish
Straw/Bronze
Point Type
Split Point
Drill Bit Material
Cobalt Steel
Shank Diameter
1/2 in.
Drill Bit Point Angle
118 deg.
Shank Type
Round
Drill Bit Size
21/32 in.
Shipping Weight
0.36 lb.
Flute Length
3-1/8 in.
General
Application
Stainless, Alloy Steel, Cast Iron, Copper, Aluminum
Material Grade - Machining
M42
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Depth:Dia. Ratio
4xD
Shank Dia.
1/2 in
Drill Bit Grouping
Individual
Shank Type - Machining
Straight
Drill Bit Point Type
Split Point
Silver & Deming Drill
Yes
Finish - Machining
Straw/Bronze
Standards
Not Rated
Material - Machining
Cobalt

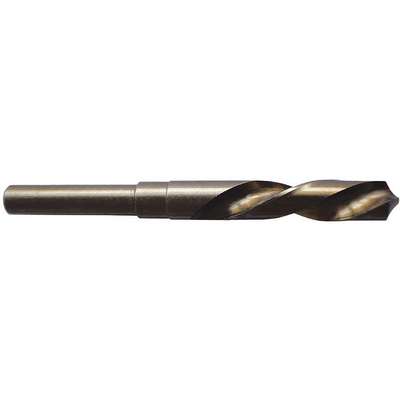

Product Description
Cobalt drill bits tolerate higher drilling speeds and are harder and more wear-resistant than high-speed steel drill bits. Also known as Silver and Deming drill bits, these reduced-shank drill bits have a 1/2" shank and a drill diameter that is greater than 1/2". They can create larger holes than standard drill bits that have a 1/2" shank.
