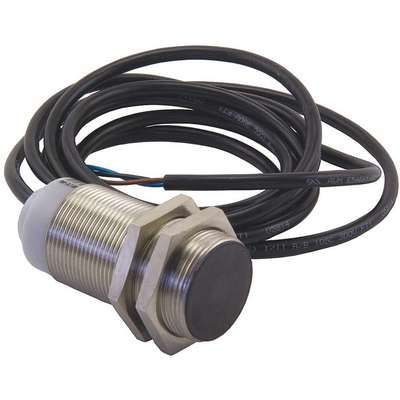

Eaton 600 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 10.0 mm
Hover over image to magnify
#926834-8 | Pkg Qty: 1
$120.70 pkg | $120.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Metal
NEMA Rating
4X
Basic Proximity Sensor Case Material
Metal
Operating Frequency
600 Hz
Brand
EATON
Operating Temperature Range
-1 deg. F to 158 deg. F
Case Material
Stainless Steel
Output Mode
NC
Circuit Type
3 Wire PNP
Power Requirement
10 to 30VDC
Depth
10 mm
Proximity Sensing Method
Inductive
Description/Special Features
Proximity Switch
Proximity Sensor Diameter
30.0 mm
Detecting Distance
10mm
Proximity Sensor Operating Frequency
600 Hz
Diameter
30 mm
Proximity Sensor Output Circuit Type
3 Wire PNP
Electrical Connection
2m Cable
Proximity Sensor Power Requirement
10 to 30 VDC
IP Rating
67
Proximity Sensor Style
Cylindrical Proximity Sensor
Item
Cylindrical Proximity Sensor
Proximity Sensor/Switch Electrical Connection
2m Cable
Length
67 mm
Sensing Method
Inductive
Maximum Current Load
100mA
Shielded/Unshielded
Shielded
Maximum Detecting Distance
10 mm
Shipping Weight
.5 lb.
Mfr. Part Number
E57G-30SPC10-C2
Width
30 mm
General
Operating Temp. Range
-13° to 158°F
Shielded / Unshielded
Shielded
Proximity Sensor Electrical Connection
2m Cable
Standards
cCE Compliance
Product Description
This general-purpose sensor is designed to offer an optimized solution to necessary functions for basic, reliable sensing. It features a stainless steel body, a 360-degree LED indicator, and short-circuit protection.
Item Barcode
Proxswitch,30mm,Shielded,Pnp,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 40HX61 | ProxSwitch, 30mm, |
 | UNSPSC CODES | 41111926 | |
 | VMRS (ATA) CODES | 053-006-009 | ProxSwitch, 30mm, |
