Associated Equipment Manual, Benchtop Battery Charger; Boosting, Charging; For Battery Voltage: 6 V DC, 12 V DC, 24 V DC

Hover over image to magnify

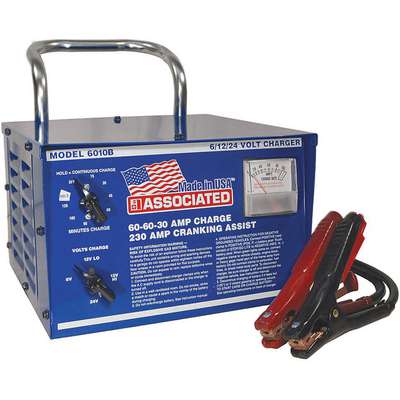

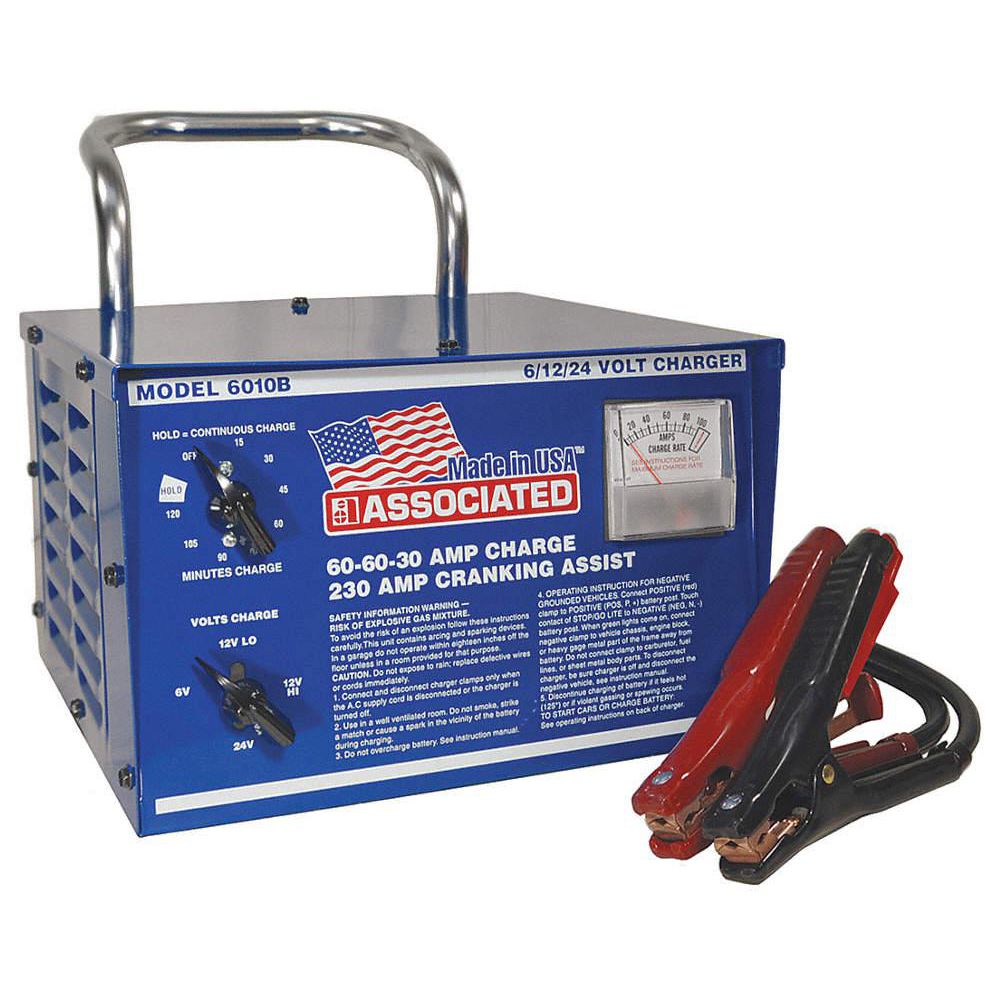

Battery Charger,6/12/24V
Battery Charger,6/12/24V

#926833-1 | Pkg Qty: 1

$909.52 pkg | $909.52 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps
60/60/30A
Input Current
30 A, 60 A
Automatic/Manual
Manual
Input Voltage
120 VAC
Average Charge Time 12 V High
Variable
Item
Battery Charger
Average Charge Time 12 V Low
Variable
Lead Size
4 AWG
Average Charge Time 6V High
Variable
Material
Steel
Boost Amps @ Voltage
230 A @ 12 V, 230 A @ 24 V, 230 A @ 6 V
Mfr. Part Number
6010B
Brand
ASSOCIATED EQUIPMENT
Overall Depth
17 in.
CEC Compliant
Non CEC Compliant
Overall Height
17 in.
Cable Gauge
4 AWG
Overall Width
16 in.
Cable Length
7 ft.
Package Quantity
1
Charge Time 12 V
Variable
Peak Amps
60A
Charge Time 6 V
Variable
Portable
Yes
Charge Type
Timer
Power Cord Length
6-1/2 ft.
Charger Function
Boosting, Charging
Shipping Weight
42 lb.
Charger Style
Benchtop
Test Feature
No
Charging Amps @ Voltage
60 A/30 A @ 12 V, 60 A/30 A @ 24 V, 60 A/30 A @ 6 V
Timer
Yes
Cranking Amps
230A
UL Rated Amps 12 V
60A
For Battery Voltage
6 V DC, 12 V DC, 24 V DC
UL Rated Amps 24 V
30A
For Use with Battery Type
Lead Acid
UL Rated Amps 6 V
60A
Housing Material
Steel
Voltage Rating
6 V, 12 V, 24 V
Indoor/Outdoor
Indoor
General
Avg. Charge Time 12V High
Variable
Includes Test Feature
No
Avg. Charge Time 12V Low
Variable
Indoor / Outdoor
Indoor
Avg. Charge Time 6V High
Variable
Input Current
30 A, 60 A
Boost Current @ Voltage
230 A @ 12V, 230 A @ 24V, 230 A @ 6V
Input Voltage
120 VAC
Cable Wire Gauge
4 AWG
Power Cord Length
6-1/2 ft.
Charge Time 12V
Variable
Standards
Non-CEC Compliant
Charge Time 6V
Variable
UL Rated Amps 12V
60A
Cold Cranking Current @ Voltage
230 A @ 12V
UL Rated Amps 24V
30A
Housing Material
Steel
UL Rated Amps 6V
60A
Includes
(2) Clamps, Jaws
UL Rated Amps Start
230A

Product Description

Battery Charger, Charger Style Benchtop, For Battery Voltage 6, 12, 24, For Use With Battery Type Lead Acid, Charger Function Boosting, Charging, Manual, Charge Type Timer, Boost Amps @ Voltage 230A @ 12V, 230A @ 24V, 230A @ 6V, Cold Cranking Amps @ Voltage 230A @ 12V, 230A @ 24V, 230A @ 6V, Charging Amps @ Voltage 60A/30A @ 12V, 60A/30A @ 24V, 60A/30A @ 6V, AC Cord Length 6 ft 6 in, Input Voltage 120V AC, Overall Width 16 in, Overall Height 17 in, Overall Depth 17 in, Cable Gauge 4 AWG

Item Barcode
9268331
