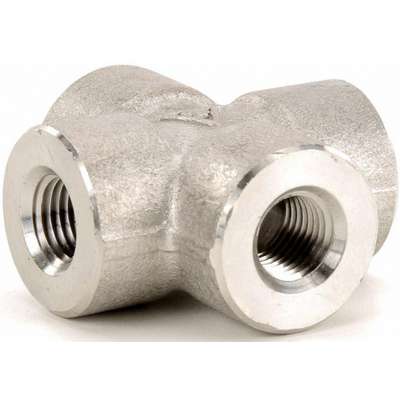

Cross: 304 Stainless Steel, 1/4 in x 1/4 in x 1/4 in x 1/4 in Fitting Pipe Size, Class 3000
Hover over image to magnify
#926816 | Pkg Qty: 1
$34.23 pkg | $34.23 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
304 Stainless Steel
Mfr. Part Number
1LVJ5
Brand
APPROVED SUPPLIER
Package Quantity
1
Connection Type
FNPT
Pipe Size
1/4 in.
Item
Cross
Shipping Weight
1.16 lb.
Maximum Pressure
3000 psi@100°F
General
Class/Pressure
Class 3000
Fitting Side C Type
NPT
Fitting Pipe Size
1/4 in x 1/4 in x 1/4 in x 1/4 in
Fitting Side D Gender
Female
Fitting Side A Gender
Female
Fitting Side D Nominal Pipe Size
1/4 in
Fitting Side A Nominal Pipe Size
1/4 in
Fitting Side D Pipe Threading
18
Fitting Side A Pipe Threading
18
Fitting Side D Type
NPT
Fitting Side A Type
NPT
Includes Pre-Applied Thread Sealant
No
Fitting Side B Gender
Female
Includes Seal
No
Fitting Side B Nominal Pipe Size
1/4 in
Material Grade
304
Fitting Side B Pipe Threading
18
Max. Steam Pressure
2500 psi @ 350 Degrees F
Fitting Side B Type
NPT
Pressure Level
High Pressure (1000-3000 psi)
Fitting Side C Gender
Female
Standards
Material Conforms To ASTM-A-182, Threads Conform To ANSI/ASME B1.20.1 meets ASME B16.11
Fitting Side C Nominal Pipe Size
1/4 in
Threading
NPT
Fitting Side C Pipe Threading
18
Product Description
The 304 stainless steel construction for this Imperial Supplies APPROVED cross fitting features a chromium nickel material that offers very good corrosion resistance.
- Compatible with Schedule 80 stainless steel pipe
- For use in air, water, and natural gas applications
