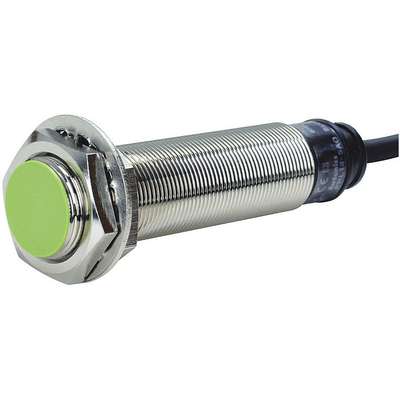

500 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 5.0mm

Hover over image to magnify
Proximity Sensor,Inductive, 18
Proximity Sensor,Inductive, 18

#926802-5 | Pkg Qty: 1

$35.67 pkg | $35.67 ea
Item Number 926802-5
Scanner Description Proximity Sensor,Inductive, 18
Inventory Status Drop Ship Item
Weight 0.25 lb
Brand AUTONICS

Technical Specifications

Basic Material
Metal
Operating Temperature Range
-13° to 158°F
Basic Proximity Sensor Case Material
Metal
Output Mode
NO
Brand
AUTONICS
Pack Quantity
1
Case
Brass
Power Requirement
12 to 24VDC
Case Material
Nickel Plated Brass with Plastic Face
Proximity Sensing Method
Inductive
Circuit Type
3 Wire NPN
Proximity Sensor Diameter
18.0mm
Connector Type
Leads
Proximity Sensor Electrical Connection
2m Cable
Detecting Distance
5mm
Proximity Sensor Operating Frequency
500 Hz
Diameter
18 mm
Proximity Sensor Output Circuit Type
3 Wire NPN
Electrical Connection
2m Cable
Proximity Sensor Power Requirement
12 to 24VDC
IP Rating
67
Proximity Sensor Style
Cylindrical Proximity Sensor
Item
Cylindrical Proximity Sensor
Sensing Method
Inductive
Length
48 mm
Sensor Type
Standard Type
Material of Construction
Brass Case, Copper Wires, Plastic Face
Shielded/Unshielded
Shielded
Maximum Current Load
200mA
Standards
CE Compliance
Maximum Detecting Distance
5 mm
Temperature Range
-13 to 158
Maximum Load
200 lb.
Type
Inductive
Mfr. Part Number
PR18-5DN
Voltage Range
12-24VDC
Operating Frequency
500 Hz
Voltage Type
DC

Product Description

This inductive proximity sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection.
