EATON

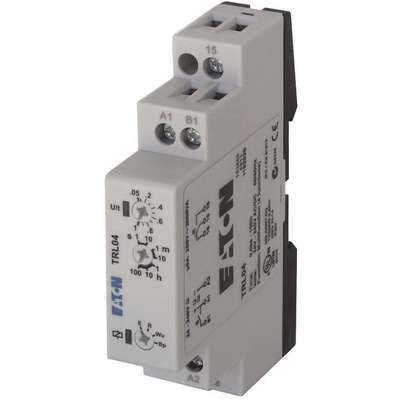

Eaton Multi-Function Time Delay Relay, 24 to 240VAC/DC Coil Volts, 8A Contact Amp Rating (Resistive), Cont

Hover over image to magnify
Time Delay Relay,24 To 240VAC/
Time Delay Relay,24 To 240VAC/
Eaton Multi-Function Time Delay Relay, 24 to 240VAC/DC Coil Volts, 8A Contact Amp Rating (Resistive), Cont Video

#926797-2 | Pkg Qty: 1

$101.09 pkg | $101.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
8 A @ 250 V
Item
Multi-Function Time Delay Relay
Adjustment Method
Rotary Dip Switch
Maximum Time Setting
100 hr.
Base Type
Not Applicable
Mfr. Part Number
TRL04
Body Depth
2.36 in.
Minimum Time Setting
0.5 sec.
Body Height
3.43 in.
Mounting
DIN Rail
Body Width
0.69 in.
Number of Functions
4
Brand
EATON
Number of Pins
8
Coil Rating
4VA
Number of Poles
1
Coil VA Rating
4
Operating Functions
8, 9, 10 + 1 Others
Coil Volts
24 to 240 VAC/DC
Overall Height
3.43 in.
Contact Form
SPDT
Pack Quantity
1
Contact Material
Silver Alloy
Pins
8
Electrical Connection
Screw Clamp
Relay Power Consumption
4.0 VA, 1.5 W
Function
On Delay (Voltage Controlled), Off Delay (with Control Input), Single Shot Leading Edge (Voltage Controlled), Symmetric Pulse Generator
Resistive Contact Amp Rating
8A
Hz
50/60
Shipping Weight
.15 lb.
Input Power Consumption
4.0 VA, 1.5 W
Socket
Not Applicable
Input or Control Voltage
24 to 240 VAC/DC
Status Indicator
LED
General
AC Contact Rating - Relay
8A @ 250V
Max. Time Setting - Timer
4 day 4 hr
Adjustment Method - Timer
Rotary Dip Switch
Min. Time Setting - Timer
0.5 sec
Body Depth - Relay
2.36 in
Mounting - Relay
DIN Rail
Body Height - Relay
3.43 in
Number of Pins - Relay
8
Body Width - Relay
0.69 in
Overall Height - Relay
3.43 in
Contact Form - Relay
SPDT
Power Consumption - Relay
1.5 W, 4 VA
Function - Timing Relay
Off Delay (with Control Input), On Delay (Voltage Controlled), One Shot Leading Edge (Voltage Controlled), Symmetric Pulse Generator
Standards
UL, cUL, CSA, CE, IEC 61812
Hz - Electrical
50 Hz, 60 Hz
Timing Relay Functionality
Off Delay, On Delay, One Shot, Pulse Generator

Product Description

Multi-Function Time Delay Relay, Function - Timing Relay Off Delay (with Control Input), On Delay (Voltage Controlled), One Shot Leading Edge (Voltage Controlled), Symmetric Pulse Generator, Coil Volts 24 to 240V AC/DC, AC Contact Rating - Relay 8A @ 250V, Number of Pins - Relay 8, Mounting - Relay DIN Rail, Contact Form - Relay SPDT, Power Consumption - Relay 1.5 W, 4.0 VA, Adjustment Method - Timer Rotary Dip Switch, Min. Time Setting - Timer 0.5 sec, Max. Time Setting - Timer 4 day 4 hr
