CLE-LINE

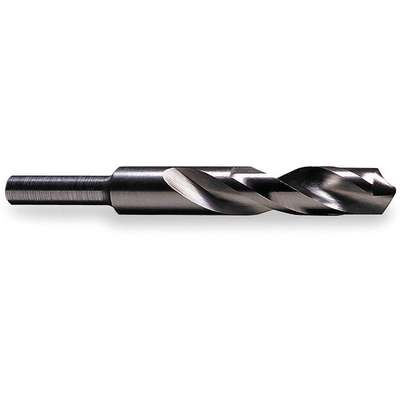

Cle-Line Reduced Shank Drill Bit, 1-3/16", High Speed Steel, Black Oxide, List Number 1813
Hover over image to magnify
#926767-9 | Pkg Qty: 1
$77.47 pkg | $77.47 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLE-LINE
Item
Reduced Shank Drill Bit
Coolant Through
Non-Coolant Through
Maximum Drilling Depth
2-1/2 in.
Cutting Direction
Right
Mfr. Part Number
C20760
Decimal Equivalent
1-3/16
Number of Flutes
2
Depth x Diameter Ratio
4xD
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
6 in.
Drill Bit Finish
Black Oxide
Package Quantity
1
Drill Bit Material
High Speed Steel
Point Type
Conventional Point
Drill Bit Point Angle
118 deg.
Series
1813
Drill Bit Size
1-3/16 in.
Shank Diameter
1/2 in.
Drill Point Length
0.3568 in.
Shank Length
2-1/4 in.
Flute Length
3-1/8 in.
Shank Type
Round
Flute Type
Spiral
Shipping Weight
1 lb.
Grade
General Purpose
Spiral Direction
Right Hand
Helix Angle
28 deg.
General
Application
For Alloy And Carbon Steel, Cast Iron And Wood
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Conventional Point
Shank Dia.
1/2 in
Drill Diameter Tolerance
+0.0000 in /-0.0015 in
Shank Type - Machining
Straight
Finish - Machining
Black Oxide
Silver & Deming Drill
Yes
Product Description
High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt drill bits. Also known as Silver and Deming drill bits, these reduced-shank drill bits have a 1/2" shank and a drill diameter that is greater than 1/2". They can create larger holes than standard drill bits that have a 1/2" shank.
Documents
Item Barcode
Silver/Deming Drill,1 3/16,Hss,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2BT70 | Silver/ Deming Drill, |
 | UNSPSC CODES | 23241605 | |
 | VMRS (ATA) CODES | 053-006-009 | Silver/ Deming Drill, |
