CHICAGO-LATROBE

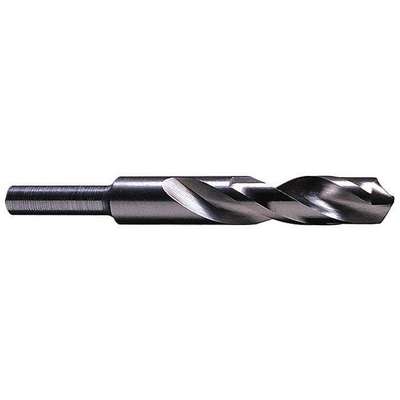

Chicago-Latrobe Reduced Shank Drill Bit, 1-3/16", Cobalt Steel, Straw/Bronze, List Number 190C
Hover over image to magnify
#926767-8 | Pkg Qty: 1
$213.01 pkg | $213.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CHICAGO-LATROBE
Helix Angle
28 deg.
Coolant Through
Non-Coolant Through
Item
Reduced Shank Drill Bit
Cutting Direction
Right
Maximum Drilling Depth
4-3/4 in.
Decimal Equivalent
1-3/16
Mfr. Part Number
53475
Depth x Diameter Ratio
4xD
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Overall Length
6 in.
Drill Bit Finish
Straw/Bronze
Package Quantity
1
Drill Bit Material
Cobalt Steel
Point Type
Split
Drill Bit Point Angle
118 deg.
Series
190C
Drill Bit Size
1-3/16 in.
Shank Diameter
1/2 in.
Drill Point Length
0.3568 in.
Shank Length
2-1/4 in.
Flute Length
3-1/8 in.
Shank Type
Round
Flute Type
Spiral
Shipping Weight
.94 lb.
Grade
General Purpose
Spiral Direction
Right Hand
General
Application
For Alloy and Carbon Steel, Cast Iron, Stainless Steel
Material - Machining
Cobalt
Coolant Fed
Non-Coolant Through
Material Grade - Machining
M42
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Split Point
Shank Dia.
1/2 in
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Shank Type - Machining
Straight
Finish - Machining
Straw/Bronze
Silver & Deming Drill
Yes
Product Description
Cobalt drill bits tolerate higher drilling speeds and are harder and more wear-resistant than high-speed steel drill bits. Also known as Silver and Deming drill bits, these reduced-shank drill bits have a 1/2" shank and a drill diameter that is greater than 1/2". They can create larger holes than standard drill bits that have a 1/2" shank.
